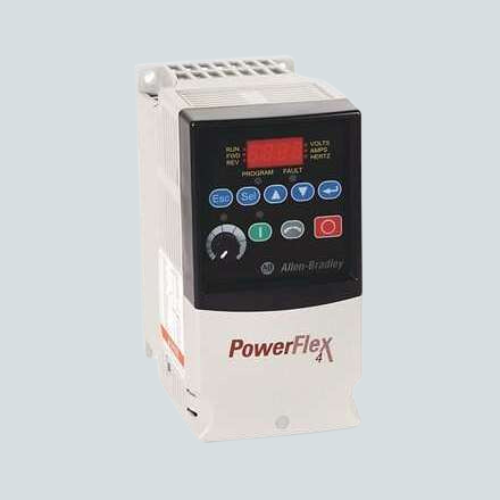

Overview of Allen Bradley 22A-A6P8N113

The Allen Bradley 22A-A6P8N113 is a compact PowerFlex 4 AC drive designed for reliable motor control in industrial automation environments. With a single-phase input voltage of 240V AC and a robust 1.5 kW (2 horsepower) output, the 22A-A6P8N113 provides flexible speed regulation for AC motors in a wide range of applications. Its panel mount, open-style enclosure (IP20, NEMA/UL Type Open) makes it suitable for installation within protected cabinets or panels. The drive simplifies motor integration, reduces energy consumption, and helps extend equipment life by minimizing mechanical stress on connected loads. Suitable for engineers and system integrators seeking a dependable, cost-effective solution for process control and material handling systems, the Allen Bradley PowerFlex series is widely recognized for ease of use, quick installation, and dependable performance.

Key Features of Allen Bradley 22A-A6P8N113

  • 1.5 kW (2 HP) adjustable frequency AC motor drive for precise process control.
  • 6.8 Amp output current at 240V AC single phase—ideal for small to mid-sized motors.
  • Panel mount, open enclosure (IP20, NEMA/UL Type Open) for easy integration.
  • V/Hz and sensorless vector control modes for improved low-speed torque and dynamic response.
  • Four preset speed options with four-step sequencing—adaptable for various mechanical loads.
  • Internal DC bus braking transistor for efficient braking without external components.
  • StepLogic sequence control for multi-step processes—useful in conveyor and mixing applications.
  • PID process control and timer/counter functions for automated workflows.
  • Keypad with digital display for direct interface and local programming.
  • Compact, fixed terminal block design for simplified installation and wiring.

Technical Specs of Allen Bradley 22A-A6P8N113

Parameter Specification
Input Voltage 240V AC, 1PH
Output Current 6.8 Amps
Output Power 1.5 kW (2 HP)
Enclosure Type Panel Mount (IP20, NEMA/UL Type Open)
Frame Size Frame Size B
Control Method V/Hz, Sensorless Vector
Preset Speeds 4
Overload Capacity 150% for 60 seconds, 200% for 3 seconds
Keypad Integrated with speed potentiometer
Wiring Fixed Terminal Block

Applications / Use Case

The Allen Bradley 22A-A6P8N113 is ideal for applications requiring variable speed AC motor control, such as conveyors, fans, pumps, mixers, and general industrial machinery. Its compact design and flexible control modes make it suitable for use in food and beverage plants, packaging lines, material handling systems, and HVAC installations. The drive is particularly valuable in scenarios where energy savings, process repeatability, and equipment protection are priorities. With built-in process control options and easy integration into existing control systems, the PowerFlex 4 series simplifies automation upgrades and helps achieve consistent, efficient operation across a broad spectrum of industrial environments.
