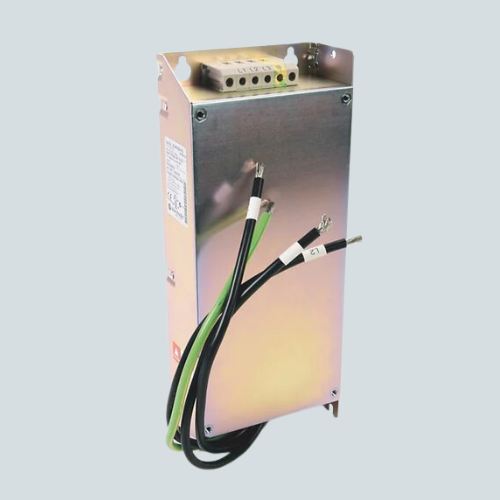

Overview of Allen-Bradley 22-RF5P7-AL
The Allen-Bradley 22-RF5P7-AL is an EMC line filter designed for PowerFlex 4 class drives. It is a 3-phase filter rated for 380-480 VAC input voltage and supports currents up to 5.7 Amps. This panel-mount filter helps reduce electromagnetic interference (EMI) and complies with industrial standards for electrical noise suppression.
Key Features of Allen-Bradley 22-RF5P7-AL
- EMC Line Filtering: Reduces conducted and radiated EMI from PowerFlex drives.
- Voltage Range: Rated for 380-480 VAC three-phase input.
- Current Rating: Supports up to 5.7 Amps continuous current.
- Mounting: Panel mount installation for ease of use in control panels.
- Protection Standards: UL, NEMA Type Open, IP20 enclosure rating.
- Compatible Series: Designed for PowerFlex 4 drives.
Technical Specs of Allen-Bradley 22-RF5P7-AL
| Specification | Details |
|---|---|
| Voltage Rating | 380-480 VAC, 3 Phase |
| Current Rating | 5.7 Amps |
| Frequency | 50/60 Hz |
| Mounting Type | Panel Mount |
| Enclosure Rating | IP20, UL-NEMA Type Open |
| Applications | EMC filter for PowerFlex 4 drives |
Applications / Use Case
The 22-RF5P7-AL line filter is used in PowerFlex 4 drive applications to minimize EMC noise and interference, ensuring compliance with industrial regulations and improving system reliability.
Allen-Bradley supports this accessory with global certifications and compatibility assurance.
-
