Overview of Allen-Bradley 2198-H2DCK

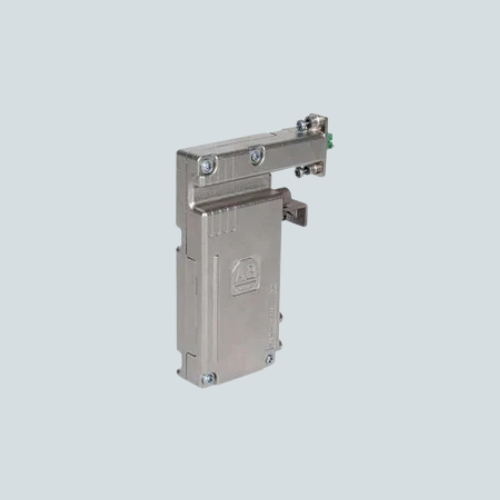

The Allen-Bradley 2198-H2DCK is a Hiperface-to-DSL feedback converter kit designed for use with Allen-Bradley 2090-Series motor feedback cables and Kinetix 5500 servo drives. This kit converts Hiperface encoder signals to a compatible digital-servo-link (DSL) feedback signal, simplifying integration and wiring in motion control systems. The kit includes terminations for 10 Hiperface encoder signals and comes with clamps, mounting hardware, and tie wraps for a complete installation solution.

Key Features of Allen-Bradley 2198-H2DCK

  • Function: Converts Hiperface encoder signals to DSL feedback signals supporting Kinetix 5500 drives
  • Compatibility: Designed for Allen-Bradley 2090-Series motor feedback cables
  • Connector Type: 10-pin terminal block, plus 2-pin DSL connectors included
  • Includes: Mounting bracket, cover screws, shield clamp with screws, clamp spacer, tie wraps, spare screws
  • Installation: Provides optimized power density and reduced panel space usage
  • Applications: Suitable for servo and induction motor feedback conversion in automation applications
  • Operation: Requires cable preparation guidelines to ensure proper shield and conductor length

Technical Specs of 2198-H2DCK

Cable Diameter Support 6.5 to 11.9 mm (0.26 to 0.47 in.)
Terminal Wire Size 0.08 to 1.5 mm² (28 to 16 AWG)
Recommended Wire Strip Length 5 mm (feedback wires), 8-10 mm (power and brake wires)
Recommended Torque 0.22 to 0.25 N•m for terminals, 0.3 N•m for clamp and cover screws
Mounting Includes mounting bracket with multiple positioning options
Operating Temperature Standard industrial ambient conditions
Kit Contents Converter kit, mounting and cover screws, shield clamp, clamp spacer, tie wrap, spare screws

Applications / Use Case

The 2198-H2DCK kit is used in automation systems requiring conversion of Hiperface encoder feedback to DSL signals for Kinetix 5500 series servo drives. It reduces wiring complexity by combining feedback and power connections in a compact and efficient form. This kit is essential for optimizing motion control applications in machinery automation, robotics, and precision manufacturing.
