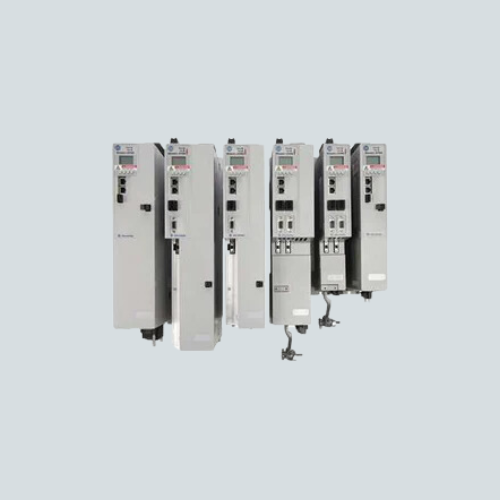

Overview of Allen-Bradley 2198-S130-ERS4 Kinetix 5700 Single-Axis Inverter

The Allen-Bradley 2198-S130-ERS4 is a high-performance single-axis inverter part of the Kinetix 5700 family. It offers advanced safety features and supports a continuous output current of 65 Arms and a peak output current of 130 Arms. The inverter is designed for motor control applications requiring precise and reliable performance with a rated power output of 725 W at 100% duty cycle.

Key Features of Allen-Bradley - 2198-S130-ERS4

  • Continuous output current (RMS): 65 A for sustained motor performance.
  • Peak output current (RMS): 130 A enabling short-term high load handling.
  • Rated power output: 725 W @ 100% duty cycle.
  • Internal capacitance: 840 µF for stable power handling.
  • Supports bandwidth up to 400 Hz at velocity loop.
  • DC input current: 69 A @ 458–747 V DC input.
  • PWM frequency: 4 kHz for smooth motor control.
  • Construction dimensions: Height 433 mm, Width 85 mm, Depth 252 mm.
  • Weight: Approximately 5.44 kg, suitable for industrial applications.
  • Environmental ratings: IP20 protection, 2 G vibration resistance, operating temperature 0 °C and non-operating -40 °C.
  • Advanced safety standards compliance with certifications as of 2024.

Technical Specifications of 2198-S130-ERS4

Model Number 2198-S130-ERS4
Continuous Output Current (RMS) 65 A
Peak Output Current (RMS) 130 A
Rated Power Output 725 W (@ 100%)
Internal Capacitance 840 µF
Input Voltage 458–747 V DC
Bandwidth 400 Hz (velocity loop max)
PWM Frequency 4 kHz
Dimensions (H x W x D) 433 mm x 85 mm x 252 mm
Weight 5.44 kg
Environmental IP20, vibration 2 G, operating temp 0 °C, storage temp -40 °C

Applications / Use Case

The 2198-S130-ERS4 inverter is used in single-axis servo motor control for advanced industrial automation. It is suitable for demanding applications requiring reliable safety features and high current output such as robotics, packaging machinery, and assembly systems.
