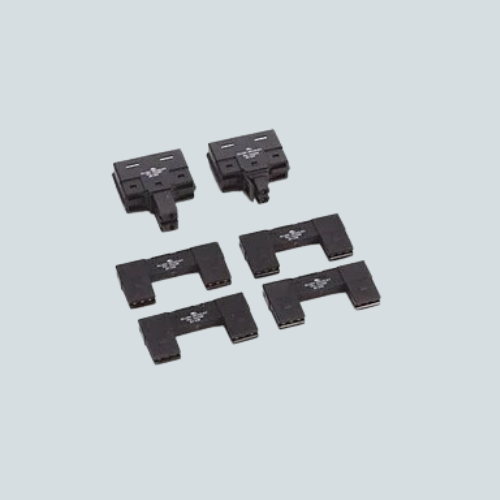

Overview of Allen Bradley 2198-H040-A-T
The Allen Bradley 2198-H040-A-T is a T-connector and bus-bar accessory designed for the Kinetix 5500 servo drive system. Specifically engineered for Frame 1 or 2 follower drives, this component facilitates AC bus connections in multi-drive configurations. It enables efficient power distribution between drives by linking the AC bus lines through reliable bus-bars and connectors. This accessory supports robust wiring architecture, ensuring consistent electrical continuity, and helps simplify the installation and maintenance of Kinetix 5500 servo drives in industrial automation systems.Key Features of Allen Bradley 2198-H040-A-T
- Compatible with Kinetix 5500 Frame 1 and Frame 2 follower drives
- T-connector design ensures efficient AC bus power sharing across drives
- Includes high-quality bus-bars for reliable electrical connection
- Simplifies wiring by providing a neat integration point for multiple drive AC buses
- Supports shared-bus configurations to reduce overall system complexity
- Durable construction meeting industrial standards for longevity
- Easy installation with plug-and-screw terminal connectors
- Certified to meet CCC, CUL, KC, and UL standards ensuring safety and compliance
- Optimizes drive system scalability by enabling seamless network expansions
Technical Specs of 2198-H040-A-T
| Specification | Description |
|---|---|
| Product Type | T-Connector and Bus-bars |
| Compatible Drives | Kinetix 5500 Frame 1 & Frame 2 follower drives |
| Bus Bar Width | 55 mm |
| Connection Type | Plug and screw terminal connectors |
| Certification | CCC, CUL, KC, UL |
| Use Case | AC bus sharing in multi-drive servo systems |
Applications / Use Case
The Allen Bradley 2198-H040-A-T is ideal for applications requiring synchronized motion control across multiple servo drives. It is widely used in manufacturing automation, including assembly lines, robotics, and packaging machinery, where reliable and coordinated motor control is crucial. By enabling shared AC bus connections within Kinetix 5500 servo systems, this component reduces wiring complexity and improves system reliability. It is particularly beneficial in setups where multiple follower drives operate under a coordinated control scheme, ensuring consistent power delivery and simplifying maintenance procedures.Related Resources
-
