Buy Allen-Bradley 2198-H015-ERS2 – Product Overview

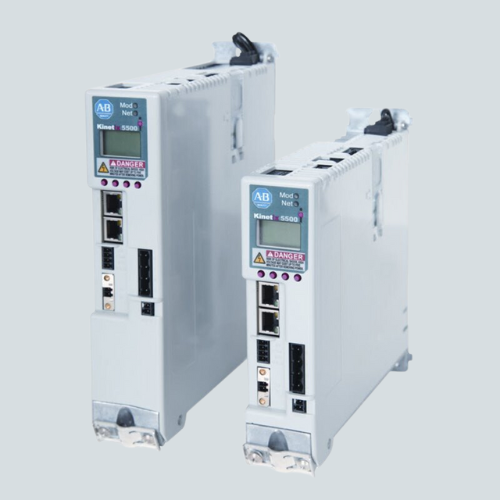

The Allen-Bradley 2198-H015-ERS2 is a Frame Size 2 Kinetix 5500 servo drive engineered for precision motion control in industrial automation. This compact, single-cable EtherNet/IP servo drive delivers 1.5 kW continuous power at 480V three-phase or 1.0 kW at 230V single-phase, with integrated safety functionality over EtherNet/IP. Designed for minimal machine footprint and simplified wiring, the 2198-H015-ERS2 supports both single-axis and multi-axis configurations with bus-sharing capability, making it ideal for production line systems and factory control panels worldwide.
Allen-Bradley 2198-H015-ERS2 Features & Benefits
The 2198-H015-ERS2 provides integrated motion functionality with CompactLogix controller compatibility on EtherNet/IP networks. Key features include safe torque-off (STO) integrated safety certified to Performance Level e and SIL CL3, dual-port Ethernet for flexible topology support, and optimized power density in a compact 265 mm (H) x 55 mm (W) x 210 mm (D) profile weighing only 2.3 kg. The drive delivers 7.1 A continuous output current (17.7 A peak), operates across 195–528V input range, and includes single cable technology incorporating feedback and motor brake connections. All components are genuine OEM, factory-tested, and available for fast worldwide shipping across North America, Europe, Asia, and international industrial markets.
Allen-Bradley 2198-H015-ERS2 Specifications & Datasheet
| Specification | Value |
|---|---|
| Continuous Output Power (480V) | 1.5 kW |
| Continuous Output Power (230V) | 1.0 kW |
| Continuous Output Current | 7.1 A (0-peak) |
| Peak Output Current | 17.7 A (1.0 sec duration) |
| Input Voltage Range | 195–264V single-phase; 324–528V three-phase |
| Frame Size | 2 |
| IP Rating | IP20 |
| Operating Temperature | 0–50°C |
| Communication | EtherNet/IP with integrated safety |
| Safety Rating | PL e / SIL CL3 (ISO 13849, IEC 61508) |
Allen-Bradley 2198-H015-ERS2 Applications in Industrial Automation
This servo drive is commonly used in industrial automation, process control, machine automation, production line systems, and factory control panels worldwide. The 2198-H015-ERS2 delivers optimum performance with Kinetix VP servo motors and is widely deployed in motion control systems requiring integrated functional safety, compact panel mounting, and reliable EtherNet/IP connectivity across global industrial facilities.
