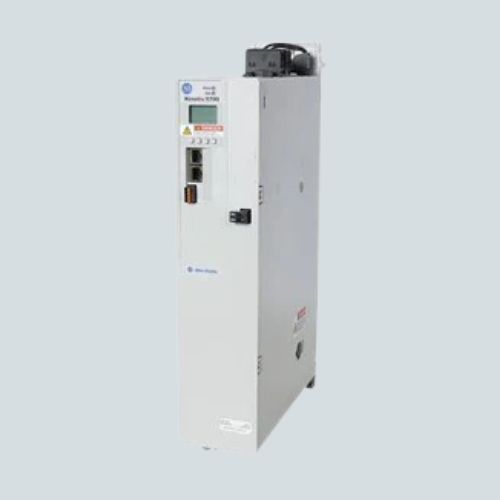

Overview of Allen-Bradley 2198-DCBUSCOND-RP312 DC-Bus Conditioner Module

The Allen-Bradley 2198-DCBUSCOND-RP312 is a DC-bus conditioner module designed for the Kinetix 5700 servo drive system. It helps to reduce voltage stress on inverter system insulation, especially when long motor cable lengths are used. The module is also capable of extending the DC-bus voltage to another inverter cluster, optimizing system performance and reliability in multi-drive configurations.

Key Features of Allen-Bradley - 2198-DCBUSCOND-RP312

  • Reduces voltage spikes and stress on inverter system insulation for long cable runs.
  • Extends DC-bus voltage to additional inverter clusters, supporting flexible multi-drive systems.
  • Includes stud/lug cover with wires, lug cover bottom plate, hex nuts, spacers for M8 studs, and 55 mm DC-bus link.
  • Equipped with wiring plugs for module status and 24 V DC input power connectors.
  • Comes with flexible bus bars for easy connection between modules.
  • Compact module width: 55 mm, allowing installation alongside other servo drive components.
  • Wiring and installation designed to meet National Electrical Code and local regulations.

Technical Specs of 2198-DCBUSCOND-RP312

Model Number 2198-DCBUSCOND-RP312
Function DC-Bus Conditioner Module
Module Width 55 mm
Compatible Systems Kinetix 5700 Servo Drives
Voltage Reduction Reduces voltage stress on inverter insulation
Installation Includes studs, lug covers, wiring plugs, bus bars
Input Power 24 V DC for module operation
Operating Temperature Not specified; designed for industrial environments
Safety Complies with NEC and local electrical codes

Applications / Use Case

The 2198-DCBUSCOND-RP312 is used in industrial servo drive clusters with long motor cable lengths to protect inverter components from voltage stress and to facilitate the extension of DC-bus voltage to additional inverter groups. This module is essential for maintaining system reliability and longevity in complex multi-axis motion control systems.
