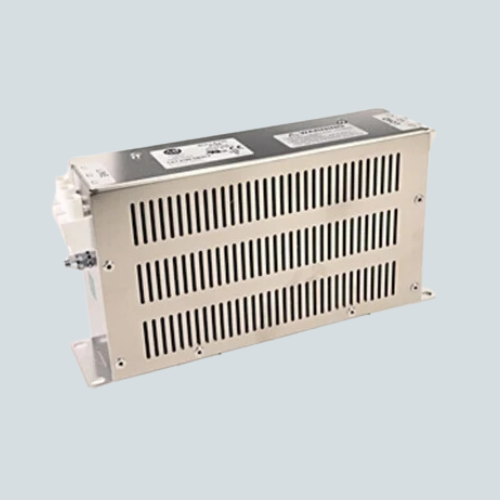

Overview of Allen-Bradley 2198-DBR20-F Line Filter
The Allen-Bradley 2198-DBR20-F is a 20 Amp three-phase EMC line filter designed for Kinetix 5500 servo drives. It reduces electromagnetic interference (EMI) on the AC power line, helping to ensure compliance with regulatory EMC standards and improve overall system reliability in industrial automation applications.
Key Features of Allen-Bradley - 2198-DBR20-F
- Current Rating: 20 Amps at 50/60 Hz, suitable for medium power servo drives.
- Voltage: Rated for use with 528V AC single and three-phase power supplies.
- EMC Filter Type: Reduces conducted and radiated electromagnetic interference.
- Compact Design: Optimized power density for installations with limited control panel space.
- Improves System Performance: Helps reduce noise and improve signal integrity.
- Operating Temperature: 0 to 50 °C (32 to 122 °F).
- Mounting: Easy to install with standard mounting options.
Technical Specs of 2198-DBR20-F
| Model Number | 2198-DBR20-F |
| Current Rating | 20 A |
| Voltage Rating | 528V AC, 50/60 Hz |
| Phases | Single and three-phase |
| Power Loss | 4.2 W at rated current |
| Leakage Current | 30 mA typical |
| Weight | 1.0 kg (2.2 lbs) |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Dimensions | 217 mm x 230 mm x 116 mm (8.54" x 9.06" x 4.57") |
Applications / Use Case
The 2198-DBR20-F EMC line filter is used with Kinetix 5500 servo drives and other industrial equipment requiring EMI noise suppression. It is ideal for applications in manufacturing and automation where compliance with EMC regulations and improved system performance are critical.
-
