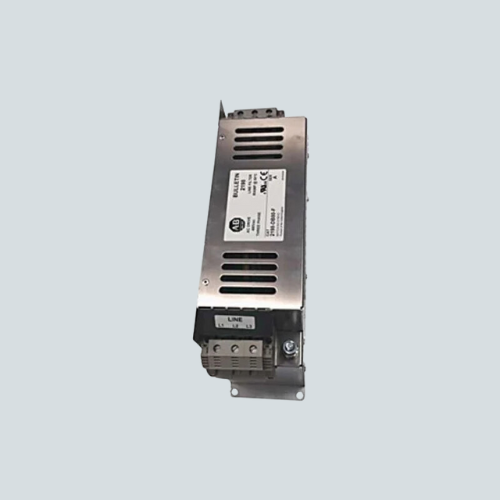

Overview of Allen-Bradley 2198-DB80-F
The Allen-Bradley 2198-DB80-F is an 80 Amp AC line filter designed for use with the Kinetix 5700 servo drive system. It provides noise suppression and power quality enhancement for servo drive applications operating up to 528V AC in single or three-phase systems at 50/60 Hz.
Key Features of Allen-Bradley 2198-DB80-F
- Current Rating: 80 Amps
- Voltage Rating: Up to 528V AC (single and three-phase)
- Frequency: 50/60 Hz
- Short Circuit Current Rating (SCCR): 200 kA
- Power Loss at Rated Current: 18.3 Watts
- Leakage Current: Typical 13.0 mA
- Operating Temperature: 0 to 50 °C (32 to 122 °F)
- Wire Size Range: 2.5 – 35 mm² (14 – 0 AWG) for input terminals
- Protection Rating: IP20
Technical Specifications of 2198-DB80-F
| Current Rating | 80 A |
| Voltage Rating | 528 V AC |
| Frequency | 50/60 Hz |
| Power Loss | 18.3 W |
| Leakage Current | 13.0 mA |
| Short Circuit Current Rating | 200 kA |
| Wire Size Range | 2.5–35 mm² (14–0 AWG) |
| Operating Temperature | 0–50 °C |
| Protection Type | IP20 |
| Dimensions (L x W x H) | Approx. 298 mm x 79 mm x 79 mm |
| Weight | 3.95 kg (8.71 lbs) |
Applications / Use Case
The 2198-DB80-F AC line filter is used in industrial servo drive systems to reduce electrical noise and improve power quality, enhancing the longevity and performance of drives and motors. It is commonly employed in automation, manufacturing, and robotics sectors where reliable noise suppression is critical for system stability and compliance with EMC standards.
-
