Overview of Allen-Bradley 2198-D057-ERS3

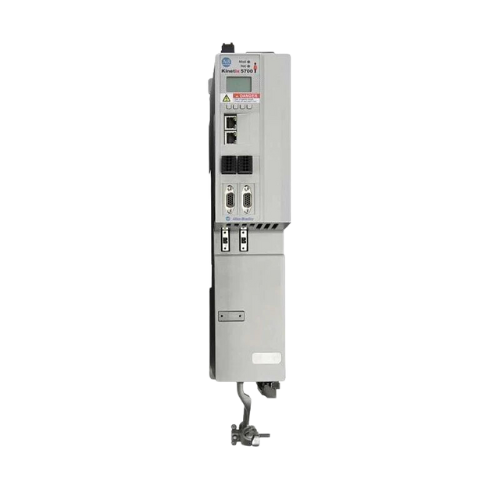

The Allen-Bradley 2198-D057-ERS3 is a Kinetix 5700 dual-axis servo drive by Rockwell Automation. It provides high-performance motion control with continuous power output up to 15.9 kW at 480V input. Designed for Ethernet/IP networks, this servo drive offers integrated dual Ethernet ports for advanced communication and control.

Key Features of Allen-Bradley - 2198-D057-ERS3

  • Dual-Axis Capability: Supports coordinated control of two servo axes in a single compact module.
  • High Power Output: Delivers up to 15.9 kW continuous power for demanding industrial motion applications.
  • EtherNet/IP Communication: Features dual Ethernet ports for flexible network topology including Device Level Ring (DLR).
  • Safety Functions: Integrated Safe Torque Off (STO), Safe Stop, and Safe Speed rated to SIL3/PLe standards.
  • High Bandwidth Control Loops: Velocity loop bandwidth up to 400 Hz and current loop bandwidth up to 1000 Hz for precise motion control.
  • Compact Form Factor: Slim 85 mm module width designed for easy installation and space saving.
  • Advanced Diagnostics: Enables monitoring and control via Logix controller platform and integration with HMI/SCADA systems.

Technical Specs of 2198-D057-ERS3

Input Voltage 458 - 746 V DC
Continuous Output Power 15.9 kW @ 480V input
Continuous Output Current (0-peak) 32.5 A
Peak Output Current (0-peak) 81.3 A
Velocity Loop Bandwidth 400 Hz
Current Loop Bandwidth 1000 Hz
PWM Frequency 4 kHz
Module Width 85 mm
Operating Temperature Range 0°C to 50°C
Weight 6.76 kg (14.9 lbs)
Dimensions (HxWxD) 252 x 85 x 433 mm (9.92 x 3.35 x 17.0 inches)
Safety Certifications CE, c-UL, C-TICK, KC, ODVA, OSHA

Applications / Use Case

The Allen-Bradley 2198-D057-ERS3 is used in high-speed multi-axis motion control applications such as packaging, robotics, CNC machining, and automated assembly systems. With integrated safety features and Ethernet/IP connectivity, it offers reliable performance in demanding industrial environments supported by Rockwell Automation’s global service network.
