2198-D032-ERS3
2198-D032-ERS3
Manufacturer: ALLEN BRADLEY
Condition: New and Unused, Surplus.

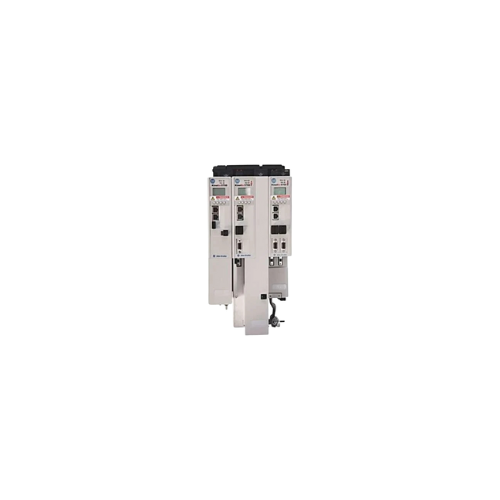

Overview of 2198-D032-ERS3 by Allen-Bradley
The Allen-Bradley 2198-D032-ERS3 is a dual-axis servo drive from the Kinetix 5700 Ethernet/IP system, delivering up to 8.9 kW continuous output power at 480V input. It is engineered for high-performance motion control with integrated functional safety features including Safe Torque Off (STO) and Timed Safe Stop 1 (SS1). This compact 55 mm wide drive supports dual Ethernet ports for linear and Device Level Ring (DLR) network topologies, optimizing connectivity for advanced industrial machines.
Key Features of Allen-Bradley - 2198-D032-ERS3
- Dual-axis servo drive providing 8.9 kW continuous output power at 480V for demanding applications
- Integrated functional safety with Safe Torque Off (STO) and Timed Safe Stop 1 (SS1) support
- Dual Ethernet ports supporting linear and DLR topologies for flexible networking
- High response velocity loop bandwidth of 400 Hz and current loop bandwidth of 1000 Hz
- Compact design with 55 mm module width and zero stacking capability for space-saving installation
- PWM frequency of 4 kHz for efficient power delivery and motor control
- Single-wire tuning reduces wiring complexity and installation time
- Compatible with GuardLogix 5580, CompactLogix 5380, ControlLogix 5570, and CompactLogix 5370 controllers
Technical Specs of 2198-D032-ERS3
| Model | 2198-D032-ERS3 |
| Product Family | Kinetix 5700 |
| Continuous Output Power | 4.5 kW at 240V, 8.9 kW at 480V |
| Continuous Output Current (0-peak) | 18.3 A |
| Peak Output Current (0-peak) | 45.9 A |
| Input Voltage Range | 276-747 V DC |
| PWM Frequency | 4 kHz |
| Velocity Loop Bandwidth | 400 Hz |
| Current Loop Bandwidth | 1000 Hz |
| Module Width | 55 mm |
| Dimensions (LxWxH) | 252 x 55 x 358 mm (9.92 x 2.17 x 14.09 in.) |
| Weight | 9.17 lbs (4.16 kg) |
| Internal Capacitance | 390 µF |
Applications / Use Case
The Allen-Bradley 2198-D032-ERS3 is suited for complex multi-axis machinery requiring precise, high-power motion control like packaging systems, beverage production, tire building machines, and tray loaders. Its integrated safety functions and network flexibility enhance machine safety and control efficiency in industrial automation.
