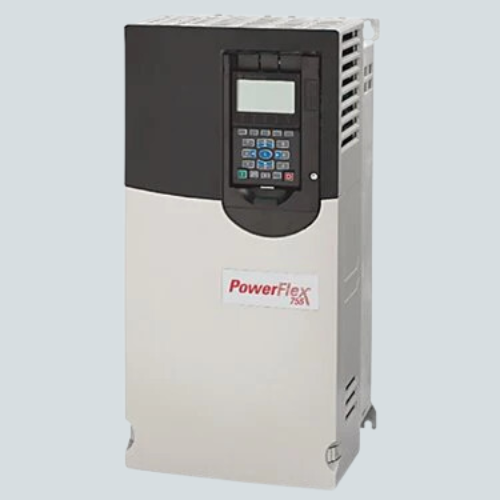

Overview of Allen Bradley PowerFlex 755 20G11RD2P1AA0NNNNN

The Allen Bradley PowerFlex 755 20G11RD2P1AA0NNNNN is a versatile AC drive designed for precise motor control in industrial environments. Operating at 480 VAC with a 3-phase input and delivering up to 1 HP in normal duty, this drive supports a wide range of applications such as pumps, fans, and conveyors. It features an open-frame, compact design with a Frame 1 size and an IP20 rating, making it suitable for controlled environments. This drive offers advanced functionality including PID control and integrated safety features, while the lack of a built-in keypad reduces device complexity in certain implementations. Designed to provide reliable performance with a current of 2.1 A, it integrates Ethernet/IP connectivity for flexible communication and control.

Key Features of Allen Bradley PowerFlex 755 20G11RD2P1AA0NNNNN

  • Three-phase input voltage of 480 V AC for industrial motor applications
  • Output power rated at 0.75 kW (1 HP normal duty) and 0.37 kW heavy duty
  • Compact Frame 1 open type enclosure with IP20 protection
  • Dynamic braking transistor to provide enhanced braking control
  • PID control characteristic for precise motor speed and torque regulation
  • Integrated Ethernet/IP communication port for seamless network integration
  • Suitable for safety functions in automated systems
  • Operating temperature range from -20 °C to 60 °C for flexible deployment
  • No built-in human interface keypad, reducing device complexity
  • Lightweight design at approximately 6 kg for easy installation

Technical Specs of 20G11RD2P1AA0NNNNN

Specification Details
Input Phases 3
Nominal Input Voltage 480 V AC
Output Power (Normal Duty) 0.75 kW (1 HP)
Output Power (Heavy Duty) 0.37 kW (0.5 HP)
Nominal Output Current 2.1 A
Control Type PID
Enclosure Type Open Type, Frame 1
IP Rating IP20
Dynamic Braking DB Transistor
Communication Embedded Ethernet/IP
Operating Temperature -20 °C to 60 °C
Dimensions (H x W x D) 400 mm x 190 mm x 211.1 mm
Weight Approx. 6 kg

Applications / Use Case

The Allen Bradley PowerFlex 755 20G11RD2P1AA0NNNNN AC drive is ideal for controlling motors in industrial automation tasks where variable speed and torque control are required. Typical uses include controlling pumps and fans in HVAC systems, conveyors in manufacturing and processing plants, and other machinery requiring smooth, efficient motor control. Thanks to its Ethernet/IP connectivity, it can be integrated into networked systems for real-time monitoring and adjustment. The drive’s built-in safety capabilities and PID control characteristic make it suitable for applications demanding precise control and reliable safety performance. Its compact design fits well in control panels with space constraints, supporting industries such as material handling, water treatment, and packaging.
