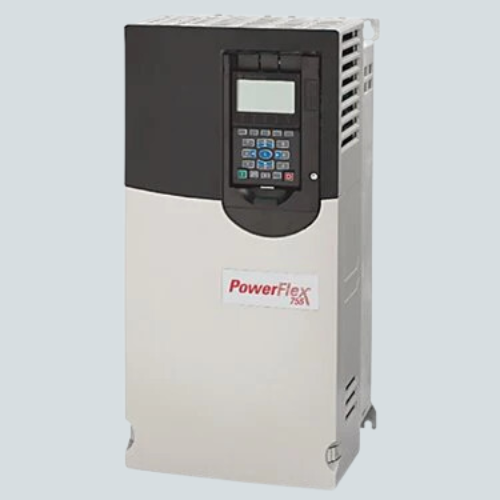

Overview of Allen Bradley PowerFlex 755 AC Drive (20G11RC5P0JA0NNNNN)

The Allen Bradley PowerFlex 755 AC Drive (model 20G11RC5P0JA0NNNNN) is part of the PowerFlex 755 AC Packaged Drive range, engineered for variable speed motor control in demanding industrial environments. This air-cooled drive delivers 400V input, supporting three-phase AC motors up to 2.2 kW for normal duty and 1.5 kW for heavy-duty applications. Its compact IP20 design and Frame 1 enclosure make it a practical solution where space is limited. With built-in Ethernet/IP connectivity, this drive enables flexible integration into advanced control systems, and includes built-in safety functions for reliable operation. The PowerFlex 755 AC Drive is well-suited for applications such as pumps, fans, and conveyors, providing efficient, high-performance motor management.

Key Features of Allen Bradley PowerFlex 755 AC Drive (20G11RC5P0JA0NNNNN)

  • Three-phase input, 400V nominal voltage for industrial compatibility
  • 5.0 A nominal output current, 2.2 kW normal duty and 1.5 kW heavy duty
  • Built-in Ethernet/IP port for fast, flexible communication and control
  • Dynamic braking transistor included for improved motor control
  • Integrated PID control for precise operation in automation processes
  • Suitable for safety function integration, supporting secure machine designs
  • Compact, air-cooled Frame 1 enclosure with IP20 degree of protection
  • Operating temperature range of -20 to 60 °C, suitable for various industrial environments
  • No keypad included, designed for panel or system integration
  • Supports a wide variety of motor applications, from pumps and fans to conveyors and other material handling systems

Technical Specs of Allen Bradley PowerFlex 755 AC Drive (20G11RC5P0JA0NNNNN)

Input Voltage 400 V AC, 3-phase
Output Current 5.0 A
Output Power (Normal Duty) 2.2 kW
Output Power (Heavy Duty) 1.5 kW
Dynamic Braking Transistor included
Communication Ethernet/IP (built-in)
Frame Size 1
Enclosure Frame 1, IP20
Dimensions (HxWxD) 400 x 190 x 211.1 mm
Weight 6 kg
Operating Temperature -20 to 60 °C

Applications / Use Case

The Allen Bradley PowerFlex 755 AC Drive (20G11RC5P0JA0NNNNN) is designed for a range of industrial motor control applications. Its robust performance and communication capabilities make it ideal for use with pumps, HVAC systems, fans, and conveyor belts. The inclusion of Ethernet/IP allows for straightforward integration into wider plant automation networks, supporting real-time monitoring and control. The drive’s flexible configuration and built-in safety functions ensure reliable operation in environments where uptime and process consistency are critical. Whether upgrading legacy systems or designing new automation solutions, the PowerFlex 755 AC Drive delivers precise speed regulation and energy-efficient operation.
