20F11GC030JA0NNNNN

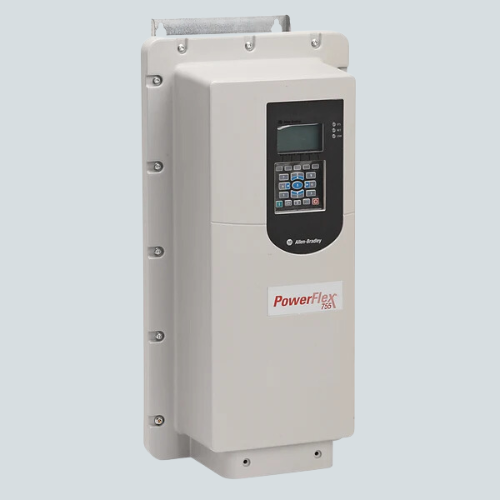

Overview of Allen-Bradley 20F11GC030JA0NNNNN PowerFlex 753 AC Drive

The Allen-Bradley 20F11GC030JA0NNNNN PowerFlex 753 is an air-cooled, compact adjustable frequency drive designed for industrial motor control applications. It operates at 400 VAC with a 3-phase input and delivers 30 amps of output current, supporting motor power ratings of 15 kW (normal duty) and 11 kW (heavy duty). The drive is housed in an IP54 / Type 12 enclosure, providing protection against dust and water for harsh environments.

Key Features

• Compact PowerFlex 753 drive with embedded I/O for flexible motor control.
• 30 amps output current suitable for 15 kW (20 HP) motors on normal duty.
• Air-cooled design with IP54 / Type 12 enclosure for industrial environments.
• 400 VAC, 3-phase input providing stable and robust performance.
• Filtered input with common-mode jumper installed to reduce electrical noise.
• Dynamic braking transistor included for efficient motor speed control.
• User-friendly interface with advanced motor control features.

Technical Specs

Parameter	Specification
Model Number	20F11GC030JA0NNNNN
Drive Type	PowerFlex 753 AC Drive, Air Cooled
Input Voltage	400 VAC, 3-phase
Output Current	30 Amps
Power Rating	15 kW (Normal Duty), 11 kW (Heavy Duty)
Enclosure	IP54 / Type 12
Cooling	Air Cooled
Features	Embedded I/O, Filtered input, Dynamic braking transistor

Applications / Use Case

Ideal for industrial applications such as pumps, fans, and conveyor systems, the PowerFlex 753 offers reliable and efficient motor speed control suited for harsh environments requiring dust and water resistance.

Allen-Bradley PowerFlex drives are engineered by Rockwell Automation for quality, durability, and compliance with industrial standards.
