20AD022A0AYNANC0

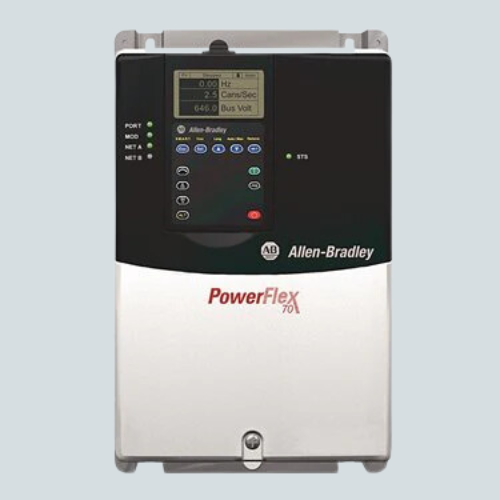

Overview of Allen-Bradley 20AD022A0AYNANC0 PowerFlex 70 AC Drive

The Allen-Bradley 20AD022A0AYNANC0 is a PowerFlex 70 adjustable frequency AC drive designed for industrial motor control. It operates at 480 VAC, three-phase power with an output current of 22 amps, supporting motors up to 15 horsepower normal duty and 10 horsepower heavy duty. The drive features a panel mount enclosure with IP20 / NEMA Type 1 rating and includes conformal coating for enhanced durability.

Key Features

• Adjustable frequency AC drive: Provides precise speed and torque control for AC motors.
• 480 VAC, 3-phase input: Suitable for a wide range of industrial motor applications.
• Output current of 22 amps: Supports high-power motors up to 15 HP (normal duty).
• Panel mount IP20 / NEMA Type 1 enclosure: Protects drive electronics in standard industrial settings.
• Conformal coating: Adds protection against moisture and contaminants.
• Advanced control options: Compatible with standard and enhanced firmware.
• Various communication options available: For seamless integration into industrial networks.
• Robust protective features: Protects against overloads, short circuits, and other faults.

Technical Specs

Parameter	Specification
Model Number	20AD022A0AYNANC0
Drive Type	PowerFlex 70 Adjustable Frequency Drive
Input Voltage	480 VAC, 3-phase
Output Current	22 Amps
Power Rating	15 HP (Normal Duty), 10 HP (Heavy Duty)
Enclosure	Panel Mount, IP20 / NEMA Type 1
Conformal Coating	Included
Control Firmware	Standard and Enhanced Options
Communication	Supports various industrial network protocols

Applications / Use Case

This drive is suited for manufacturing, HVAC, and material handling applications that demand reliable and efficient speed and torque control of AC motors. It helps improve process efficiency and reduce energy consumption.

Allen-Bradley PowerFlex drives are backed by Rockwell Automation’s reputation for quality and industrial compliance.
