Overview of Allen-Bradley 2098-DSD-HV030-SE

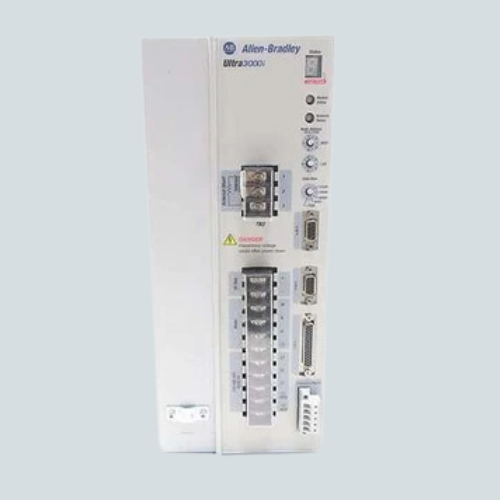

The Allen-Bradley 2098-DSD-HV030-SE is a high voltage Ultra 3000 Digital Servo Drive with a SERCOS fiber optic communication interface. It is designed for precise motion control applications, offering continuous output power of 1.5 kW at 230 V AC and 3.0 kW at 480 V AC. The drive supports three-phase 230-480 V AC input, has a continuous output current of 7 A, and can handle up to 14 A peak output current.

Key Features

  • SERCOS communication interface with fiber optic cables
  • Compatible with 230-480 V AC three-phase input voltage
  • Continuous output power of 1.5 kW at 230 V and 3.0 kW at 480 V
  • Continuous output current of 7 A and intermittent peak current of 14 A
  • Built-in support for multi-turn absolute encoders
  • Field-programmable flash memory for firmware updates
  • Eight selectable general purpose inputs and four selectable outputs plus a relay output
  • Operating temperature range of 0 to 55 °C and storage temperature of -40 to 70 °C
  • Shock and vibration resistant to industrial standards
  • Bus capacitance of 470 µF and internal shunt resistance of 120 Ohms

Technical Specifications

Model 2098-DSD-HV030-SE
Product Series Ultra 3000
Input Voltage 230-480 V AC, 3-phase
Input Frequency 47-63 Hz
Continuous Output Power 1.5 kW @ 230 V / 3.0 kW @ 480 V
Continuous Output Current 7 A
Peak Output Current 14 A (0-peak)
Communication Interface SERCOS Fiber Optic (4 and 8 Mbps)
Inputs/Outputs 8 general purpose inputs, 4 general purpose outputs, 1 relay output
Dimensions (HxWxD) 242.2 x 360.7 x 138.7 mm (9.54 x 14.2 x 5.46 in.)
Weight 8.55 kg (18.8 lbs)
Operating Temperature 0 to 55 °C
Storage Temperature -40 to 70 °C

Applications

The 2098-DSD-HV030-SE Digital Servo Drive is ideal for high-performance industrial motion control applications requiring precise control, such as in automation and manufacturing equipment. Its SERCOS fiber optic interface supports real-time high-speed communication for advanced motion architectures.
