2090-UXBC-D1501

Overview of Allen Bradley 2090-UXBC-D1501

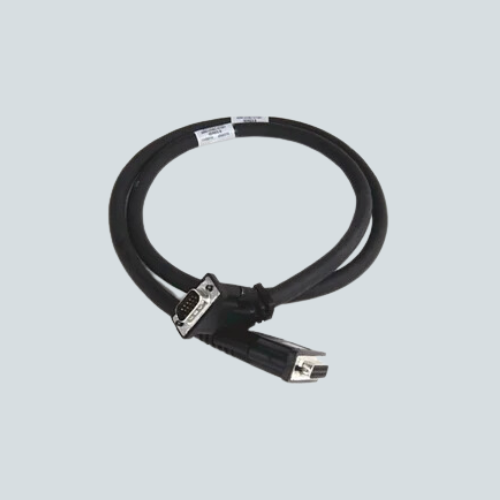

The Allen Bradley 2090-UXBC-D1501 is a breakout board cable designed for use with the Ultra 3000 drive series. It provides a reliable and efficient connection solution, ideal for applications requiring high-density connectivity. This cable is part of the Ultra Series, which is renowned for its performance and compatibility with various Kinetix drives.

Key Features of Allen Bradley 2090-UXBC-D1501

- **15-Pin High-Density D-Shell Interface Connector**: Ensures secure and compact connections. - **1 Meter Length**: Suitable for applications requiring precise control and flexibility. - **Compatibility with Ultra 3000 Drives**:pecially designed for interface with CN2 connectors. - **Breakout Style Cable**: Ideal for simplifying complex wiring configurations. - **Quality Construction**: Built to withstand demanding industrial environments. - **Versatile Use**: Compatible with a range of Kinetix drives, including 300/350, 2000, 6000, 6200/6500, and 7000.

Technical Specs of 2090-UXBC-D1501

Currently, detailed technical specifications like pinouts and voltage ratings are not highlighted in the description. However, the cable is designed to support the operational requirements of Ultra 3000 drives efficiently.

Applications / Use Case

The Allen Bradley 2090-UXBC-D1501 breakout board cable is primarily used in industrial automation systems, particularly in applications involving motion control and servo drives. It facilitates the integration of Ultra 3000 drives into systems, ensuring reliable communication and control. This cable is essential for industries requiring precise motion control, such as manufacturing, robotics, and assembly lines.
