Overview of Allen Bradley 2090-UXBB-D15

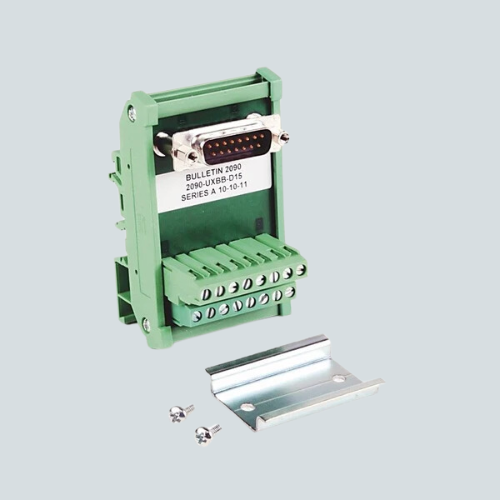

The Allen Bradley 2090-UXBB-D15 is a panel-mount servo feedback breakout board designed for integration with Allen Bradley’s advanced motion control drives, including Kinetix and Ultra3000 series. This rugged component provides a convenient interface for connecting, testing, and troubleshooting feedback devices—such as encoders and resolvers—essential for precise motor control in automation systems. Featuring a 15-pin male D-sub connector, the 2090-UXBB-D15 supports a broad range of servo applications, from single-axis positioning to complex, multi-axis coordinated motion. Its robust construction and field-programmable firmware make it a reliable choice for demanding industrial environments where uptime and accuracy are critical.

Key Features of Allen Bradley 2090-UXBB-D15

  • Designed for Kinetix and Ultra3000 drive compatibility, supporting both modern and legacy Allen Bradley motion controllers
  • Panel-mount 15-pin male D-sub connector for secure, high-density signal routing
  • Wide input voltage range: 110V–460V (0.25–22 kW), with 100–480V AC options for single or three-phase systems
  • Multiple connectivity options including SERCOS interface and DeviceNet for flexible system integration
  • Peak current capability from 7.5A to 150A, suitable for a broad spectrum of servo motor sizes
  • Field-programmable flash memory for easy firmware updates and configuration changes
  • Eight selectable general-purpose inputs and four selectable general-purpose outputs for versatile system interfacing
  • Built-in support for multi-turn absolute encoders, plus an option to supply external logic power to maintain position during power loss
  • Integrated serial port supports RS-232 or RS-485 communications for diagnostics and setup
  • High reliability for continuous operation in demanding industrial automation applications

Technical Specs of 2090-UXBB-D15

Parameter Specification
Product Series 2090 (Motion Accessories)
Connector Type 15-pin male D-sub, panel mount
Continuous Output Power 110V–460V (0.25–22 kW)
Input Voltage Options 100–480V AC (single/three-phase)
Peak Current 7.5–150A
Communication SERCOS, DeviceNet, RS-232/RS-485
Inputs / Outputs 8 selectable inputs, 4 selectable outputs + relay
Encoder Support Multi-turn absolute, external logic power option

Applications / Use Case

The Allen Bradley 2090-UXBB-D15 breakout board is widely used in industrial automation systems requiring precise motion control. Typical applications include CNC machinery, packaging lines, material handling systems, and robotics, where accurate feedback from servo motors is vital for performance and reliability. The board’s flexibility allows engineers to integrate a variety of feedback devices and easily troubleshoot signal issues without system downtime. Its compatibility with both new and existing Allen Bradley drives makes it a practical upgrade or replacement component for maintenance and system expansion. The field-programmable features and robust connectivity options ensure the 2090-UXBB-D15 meets the demands of both discrete and process automation environments.
