Overview of Allen Bradley 2090-U3BB-D44

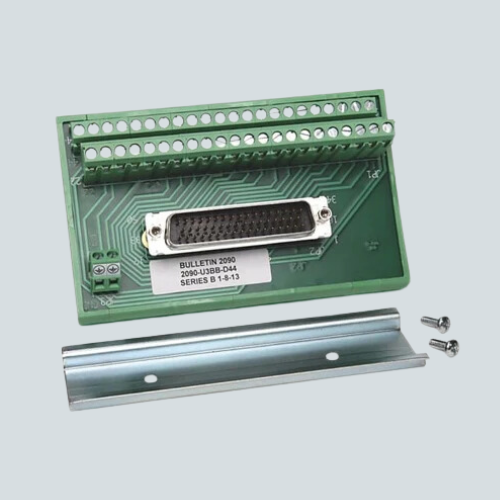

The Allen Bradley 2090-U3BB-D44 is a breakout board designed for use with the Ultra 3000 series of products. It facilitates connectivity and control in industrial automation systems, offering a range of features that support various motion control applications. This board is part of the broader family of Allen Bradley motion control accessories, which are known for their reliability and versatility in industrial environments.Key Features of Allen Bradley 2090-U3BB-D44
- **44-Pin D-Sub Connector**: Provides a high-density connection interface for various signal and power inputs. - **Panel-Mount Design**: Allows for easy integration into control panels and machinery enclosures. - **SERCOS and DeviceNet Connectivity**: Offers flexibility in networking options for seamless communication with other devices. - **General Purpose Inputs and Outputs**: Supports up to eight general-purpose inputs and four outputs, including a relay output. - **RS-232/RS-485 Serial Port**: Enables serial communication for data transfer and configuration. - **Support for Multi-Turn Absolute Encoders**: Enhances positioning accuracy by supporting advanced encoder technology. - **Field-Programmable Firmware**: Allows for updates and modifications to firmware in the field. - **External Logic Power Supply Option**: Maintains position data during power loss.Technical Specs of Allen Bradley 2090-U3BB-D44
| Parameter | Description |
|---|---|
| Connection Type | 44-Pin D-Sub Connector |
| Mounting Style | Panel-Mount |
| Dimensions | 2-3/4" W x 3.43" D x 4.96" H |
| Serial Communication | RS-232/RS-485 |
| Encoder Support | Multi-Turn Absolute Encoders |
Applications / Use Case
The Allen Bradley 2090-U3BB-D44 breakout board is primarily used in motion control applications, particularly with the Ultra 3000 series. It is ideal for integrating servo control systems into machinery and manufacturing lines, ensuring precise and reliable operation. This board supports various industrial automation environments where motion control is critical, including robotics, CNC machines, and other precision motion systems.Related Resources
-
