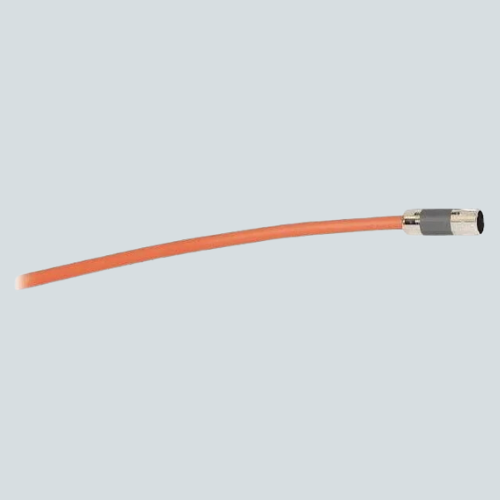

Overview of Allen Bradley 2090-CSWM1DE-18AA07

The Allen Bradley 2090-CSWM1DE-18AA07 is a standard, non-flexible single motor cable designed for direct integration with Kinetix servo systems. This cable is engineered for dependable power transmission between Allen Bradley Kinetix 5700 servo drives and compatible motors. Built with 18 AWG conductors, it offers solid electrical performance and reliable signal integrity for demanding industrial automation environments. The 7-meter length provides flexibility in motor placement, and factory-installed flying-leads simplify installation. This cable is not service-repairable, reflecting its durable, ready-to-use construction. It is suitable for use in voltage applications up to 1000 V, making it a practical choice for a variety of motion control applications.

Key Features of Allen Bradley 2090-CSWM1DE-18AA07

  • Standard, non-flexible construction ensures consistent performance in fixed installations
  • 18 AWG wire size for reliable power and signal transmission
  • 7-meter cable length for flexible motor placement relative to drive
  • Single SpeedTec DIN connector at motor end for secure connection to Kinetix servo motors
  • Drive-end features flying-leads for direct connection to Kinetix 5700 servo drives
  • Factory pre-installed leads reduce installation time and potential wiring errors
  • Designed for 1000 V applications, compliant with industrial electrical standards
  • Outer diameter of approximately 15 mm for strain relief and mechanical protection
  • Not repairable – engineered for reliability and long service life

Technical Specs of 2090-CSWM1DE-18AA07

Wire Gauge 18 AWG
Cable Type Standard, Non-Flexible
Length 7 Meters
Drive-End Connector Flying-Leads, Pre-Installed
Motor-End Connector Single SpeedTec DIN
Voltage Rating 1000 V
Outer Diameter ~15 mm
Core Color Green/Yellow
Repairable No

Applications / Use Case

The Allen Bradley 2090-CSWM1DE-18AA07 is ideal for applications requiring secure, high-performance connections between Kinetix 5700 servo drives and motors. It is commonly used in packaging machinery, material handling systems, printing presses, and other automation platforms where precise motion control is critical. The pre-wired, non-flexible design suits installations with fixed cable paths, minimizing the risk of cable fatigue and ensuring stable electrical connections. This cable is a standard component in Allen Bradley Kinetix motion control solutions, supporting reliable system uptime and simplified maintenance. For any application demanding robust power and feedback cabling in a servo-driven system, this model delivers consistent performance and ease of integration.
