2090-CSWM1DE-14AA20

Overview of Allen-Bradley 2090-CSWM1DE-14AA20 Power Cable

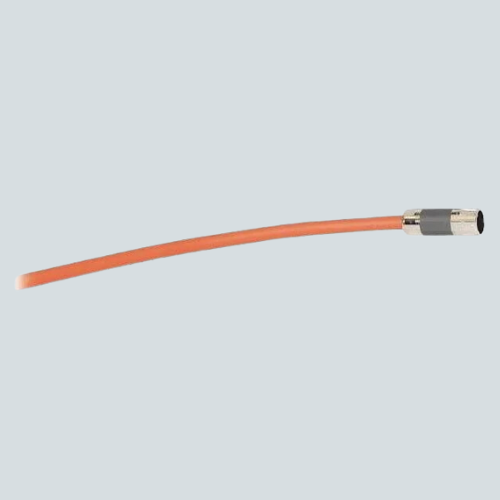

The Allen-Bradley 2090-CSWM1DE-14AA20 is a single motor power cable designed for Kinetix 5500 servo drives. It features a 14 AWG conductor and a length of 20 meters. This cable has a standard, non-flex TPE orange jacket for durability and electrical insulation, providing a reliable 1000V rated power connection for industrial servo applications.

Key Features

• Single motor power cable: Dedicated for power transmission to servo motors.
• 14 AWG conductor size: Supports typical servo motor current requirements.
• 20-meter length: Suitable for medium-length motor-to-drive connections.
• Standard, non-flex TPE jacket: Provides mechanical protection and electrical insulation.
• Single SpeedTEC DIN connector on motor end: Ensures secure and standardized motor connection.
• Drive-end flying-lead with feedback and power conductors: Allows flexible drive connection.
• 1000V voltage rating: Suitable for industrial power environments.

Technical Specs

Parameter	Specification
Model Number	2090-CSWM1DE-14AA20
Cable Type	Single motor power cable
Conductor Size	14 AWG
Cable Length	20 meters
Jacket Material	TPE, standard non-flex
Motor End Connector	Single SpeedTEC DIN
Drive End Connector	Flying-lead with combined power and feedback conductors
Voltage Rating	1000 V

Applications / Use Case

This cable is ideal for Kinetix 5500 servo drive systems, providing reliable power delivery to servo motors in fixed industrial automation setups.

Allen-Bradley cables are engineered by Rockwell Automation to meet industry standards for performance and reliability.
