Overview of Allen Bradley 2090-CSBM1DF-18AF02

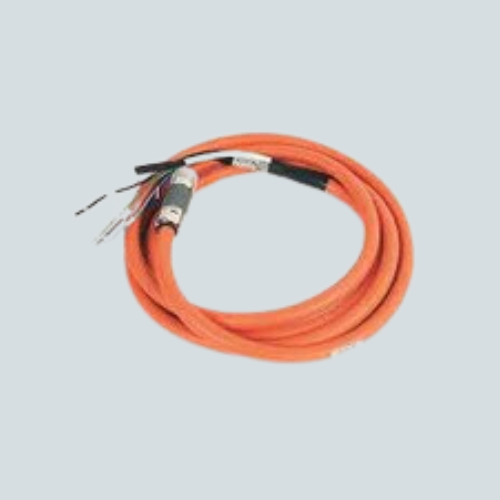

The Allen Bradley 2090-CSBM1DF-18AF02 is a Kinetix single motor power, feedback, and brake cable designed for industrial automation applications. Featuring an 18 AWG wire gauge and a continuous-flexible TPE jacket, this cable ensures durability and reliable performance even under rigorous motion control demands. The cable includes a single SpeedTec DIN connector on the motor end and flying-lead on the drive end, optimized for use with Kinetix 5500 servo drives. Its orange outer sheath provides excellent mechanical and chemical resistance, making it suitable for harsh environments. With a nominal voltage rating of 1000V and a maximum conductor temperature of 105°C, this cable offers both power and precise feedback communication in one hybrid design.

Key Features of Allen Bradley 2090-CSBM1DF-18AF02

  • Continuous-flex TPE cable jacket for enhanced durability and flexibility
  • 18 AWG copper conductors with tinned surface for corrosion resistance
  • Single motor power combined with feedback and brake wires in one cable
  • Single SpeedTec DIN motor-end connector optimized for Kinetix 5500 systems
  • 1000V nominal voltage rating for industrial power applications
  • Low capacitance cable design to maximize system power density
  • Orange RAL 2003 colored outer sheath for easy identification
  • Continuous bend radius is 10 times the cable diameter, suitable for motion control flexing
  • Overtinned copper braid and aluminum/polyester tape for excellent EMI and EMC shielding
  • Rated for maximum conductor temperature of 105°C ensuring thermal stability

Technical Specs of 2090-CSBM1DF-18AF02

Parameter Specification
Wire Gauge 18 AWG
Cable Style Continuous-flex TPE jacket
Motor-end Connector Single SpeedTec DIN connector
Number of Conductors 8 (Power, Feedback, Brake wires)
Conductor Material Tinned Copper
Nominal Voltage 1000 V
Outer Diameter Approx. 15 mm
Cable Length 2 meters
Maximum Conductor Temperature 105 °C

Applications / Use Case

The Allen Bradley 2090-CSBM1DF-18AF02 cable is ideal for use in motion control applications where power, brake, and feedback signals must be transmitted through a single cable. It is primarily used with Allen Bradley Kinetix 5500 servo motor drives in automated machinery, packaging equipment, robotics, and CNC machines. The cable’s continuous-flex design supports long-lasting reliability in dynamic environments where frequent bending and twist occur. Its EMI shielding ensures signal integrity for precise motor feedback communication, critical in high-performance industrial automation systems. The ability to combine multiple wiring functions into one cable reduces installation complexity and saves panel space.
