Overview of Allen Bradley 2090-CSBM1DE-18AA05

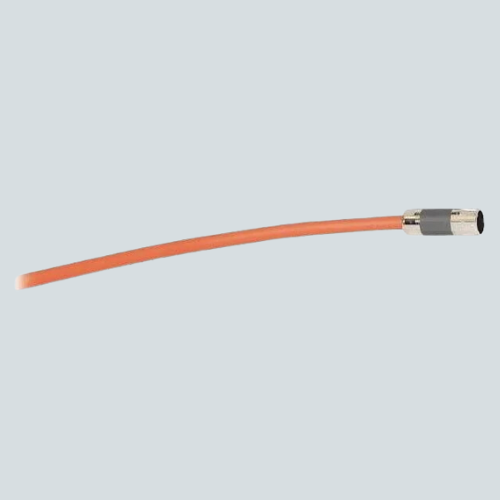

The Allen Bradley 2090-CSBM1DE-18AA05 is a high-quality Kinetix cable designed specifically for single motor applications within the 2090 series. It features a standard, non-flex cable style with 18 AWG conductors capable of supporting up to 1000V hybrid functionalities. This cable integrates power, feedback, and brake wires into one assembly, facilitating reliable and efficient communication between motor and drive. The motor-end connector is a single SpeedTec DIN type, and the drive-end connector is designed as a single cable for Kinetix 5700 drives, making it a compatible choice for advanced servo and motion control systems. Its 5-meter length ensures sufficient reach while maintaining signal integrity for industrial automation tasks.

Key Features of Allen Bradley 2090-CSBM1DE-18AA05

  • Standard, non-flex cable style for durability in stationary installations
  • 18 AWG conductor size providing a good balance of flexibility and power handling
  • Rated for 1000V to accommodate demanding industrial environments
  • Includes four power wires, two feedback wires, and two brake wires within a single cable
  • Motor-end connector: single SpeedTec DIN connector for secure motor interface
  • Drive-end connector: single cable designed specifically for Kinetix 5700 drives
  • Length of 5 meters, suitable for a variety of installation needs
  • Compatible with Allen Bradley Kinetix servo drive systems
  • Constructed with TPE (Thermoplastic Elastomer) jacket for chemical and abrasion resistance

Technical Specs of 2090-CSBM1DE-18AA05

Specification Details
Cable Style Standard, Non-flex
Conductor Size 18 AWG
Voltage Rating 1000 V
Power Wires 4
Feedback Wires 2
Brake Wires 2
Drive-End Connector Single cable for Kinetix 5700
Motor-End Connector Single SpeedTec DIN Connector
Cable Length 5 meters
Jacket Material TPE (Thermoplastic Elastomer)

Applications / Use Case

The Allen Bradley 2090-CSBM1DE-18AA05 cable is ideally suited for industrial automation environments where Kinetix servo systems are used. It is commonly employed in applications requiring integrated power, feedback, and brake wiring, such as precision motion control in manufacturing processes, robotics, and packaging machinery. This cable supports reliable data transmission and power delivery in servo motor setups, contributing to system accuracy and performance. Its standard, non-flex design makes it perfect for fixed installations where cables do not move frequently. The combination of 18 AWG wiring and a 1000V rating makes it capable of handling medium-power servo motors, ensuring safety and longevity in demanding industrial tasks.
