2090-CSBM1DE-14AA30

Overview of Allen-Bradley 2090-CSBM1DE-14AA30 Connection Cable

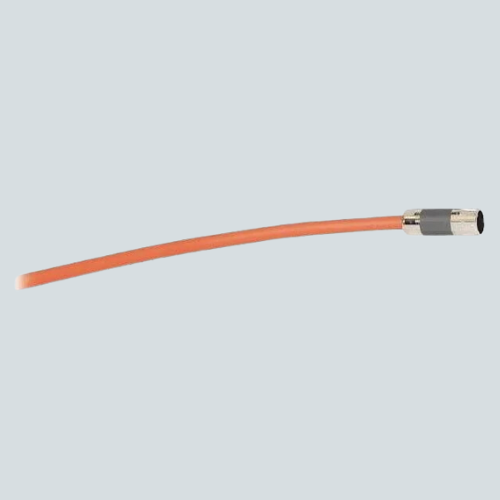

The Allen-Bradley 2090-CSBM1DE-14AA30 is a single motor power cable with brake wires, specially designed for Kinetix 5700 servo drive systems. It features a 14 AWG conductor size and a length of 30 meters. The cable provides a standard, non-flex design with a single SpeedTEC DIN connector on the motor end and flying-leads with a factory pre-installed connector kit on the drive end, optimized for Kinetix 5700 drives.

Key Features

• Single motor power cable with brake wires: Delivers power and brake signals in one hybrid cable.
• 14 AWG conductor size: Suitable for moderate power requirements of industrial servo motors.
• 30-meter length: Supports medium-range motor-drive connections in automation setups.
• Standard, non-flex cable design: Durable for fixed installations without frequent movement.
• Motor end with SpeedTEC DIN connector: Ensures reliable and secure motor interfacing.
• Drive end with flying-leads and pre-installed connector kit: Simplifies installation and connection to Kinetix 5700 drives.
• TPE jacket material: Provides mechanical and chemical resistance.
• 1000 V nominal voltage rating: Suitable for high-voltage industrial applications.

Technical Specs

Parameter	Specification
Model Number	2090-CSBM1DE-14AA30
Cable Type	Single motor power with brake wires
Conductor Size	14 AWG
Cable Length	30 meters
Cable Style	Standard, non-flex
Motor End Connector	Single SpeedTEC DIN Connector
Drive End Connector	Flying-leads with factory pre-installed connector kit
Jacket Material	TPE (Thermoplastic Elastomer)
Voltage Rating	1000 V
Outer Diameter	Approx. 17 mm
Color	Orange (RAL2003)

Applications / Use Case

This cable is ideal for connecting Kinetix 5700 servo drives to motors in industrial automation systems, delivering power and brake signals reliably. It is designed for installation in environments where fixed, non-flexible cable runs are acceptable.

Allen-Bradley products are trusted globally for quality and compliance with industrial standards, supported by Rockwell Automation.
