Overview of Allen Bradley 2090-CSBM1DE-14AA05

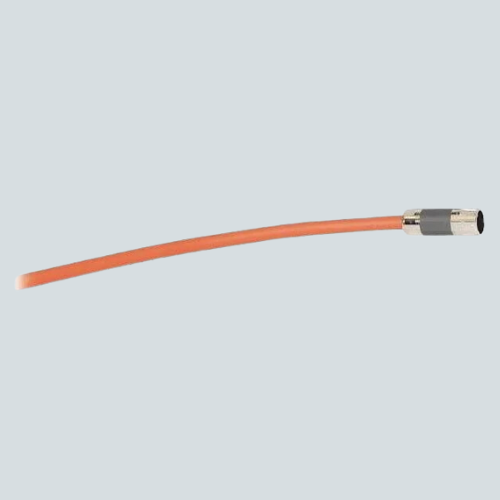

The Allen Bradley 2090-CSBM1DE-14AA05 is a single DSL power, feedback, and brake cable from Rockwell Automation’s Kinetix 2090 series. Engineered for servo motor applications, this cable streamlines connections between Kinetix 5500 drives and compatible motors. It integrates four 1000V-rated power conductors, two digital feedback lines, and two brake conductors in a single, 5-meter, orange-jacketed cable. The design supports both high-current power transmission and precise digital feedback for servo motor control. With a drive-end flying lead and a motor-end single SpeedTec DIN connector, this cable is ideal for engineers seeking reliable, maintenance-friendly motor connections in automated machinery, packaging, and material handling systems.

Key Features of Allen Bradley 2090-CSBM1DE-14AA05

  • Designed for Kinetix 5500 and compatible servo systems—simplifies machine integration and reduces wiring complexity.
  • Hybrid cable combines 4 power conductors (1000V, 14 AWG), 2 digital feedback lines, and 2 brake conductors in one durable jacket.
  • Drive-end flying leads with a pre-installed connector kit for direct termination to the drive.
  • Motor-end features a keyed, locking SpeedTec DIN connector for secure, vibration-resistant motor connections.
  • Total cable length: 5 meters, suitable for standard runs in industrial enclosures and equipment bays.
  • Standard, non-flex construction with a 17 mm outer diameter and white TPE core—balance durability and performance.
  • International compliance with C-TICK, CCC, and KC standards for global installations.
  • Color-coded orange cable for easy identification in crowded cable trays and panels.

Technical Specs of 2090-CSBM1DE-14AA05

Specification Details
Brand / Series Allen Bradley 2090-Series
Part Number 2090-CSBM1DE-14AA05
Drive-end Type Flying leads, connector kit, for K5700 drive
Motor-end Type Single SpeedTec DIN connector
Conductor Size 14 AWG for power, 18 AWG (1.0mm²) for feedback/brake
Voltage Rating 1000V AC
Insulation/Jacket TPE (thermoplastic elastomer), orange, non-flexible
Cable Length 5 meters (16.4 ft)
Standards C-TICK, CCC, KC

Applications / Use Case

The Allen Bradley 2090-CSBM1DE-14AA05 is engineered for industrial automation motion control applications, especially where Rockwell Kinetix 5500 servo drives are deployed. This cable is commonly used in packaging machines, CNC tools, robotic arms, and other precision automation systems that require both reliable power transmission and accurate digital feedback. The integrated single cable design reduces installation time, minimizes cable bulk, and helps maintain signal integrity across drive-to-motor links. With its hybrid construction, it is suitable for environments where vibration and industrial noise are concerns, ensuring stable motor performance and easy maintenance.
