2090-CPWM7DF-16AF20

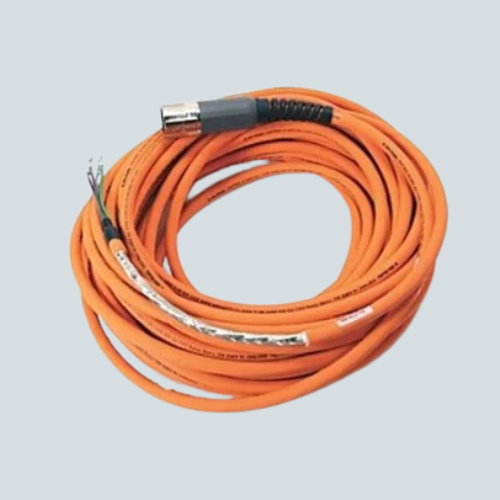

Overview of Allen-Bradley 2090-CPWM7DF-16AF20 SpeedTEC Motor Power Cable

The Allen-Bradley 2090-CPWM7DF-16AF20 is a SpeedTEC motor power cable with brake wires designed for MP-Series servo drives. It features a 16 AWG conductor and a length of 20 meters. The cable has a SpeedTEC DIN connector on the motor end and a flying-lead on the drive end with a continuous-flex design, ideal for motion control applications requiring flexible and durable power delivery.

Key Features

• SpeedTEC motor power cable with brake wires: Combines motor power and brake signals in one cable.
• 16 AWG conductor size: Suitable for typical power loads of servo motors.
• 20-meter length: Fits a wide range of industrial motion control system layouts.
• Continuous-flex design: Supports dynamic motion and flexing without damage.
• Motor-end SpeedTEC DIN connector: Provides reliable and standardized motor connection.
• Drive-end flying-lead: Offers flexible and easy wiring to drive units.
• Non-repairable: Maintains cable integrity through replacement if damaged.

Technical Specs

Parameter	Specification
Model Number	2090-CPWM7DF-16AF20
Cable Type	SpeedTEC Motor Power with Brake Wires
Conductor Size	16 AWG
Cable Length	20 meters
Design	Continuous Flex
Motor End Connector	SpeedTEC DIN
Drive End Connector	Flying-lead
Flexibility	Continuous Flex
Repairable	No

Applications / Use Case

This cable is suitable for motion control and servo applications requiring flexible, durable motor power and brake wire connections, particularly in industrial automation with dynamic cable movement.

Allen-Bradley products are produced by Rockwell Automation, known for industrial quality and standards compliance.
