2090-CPWM7DF-16AA60

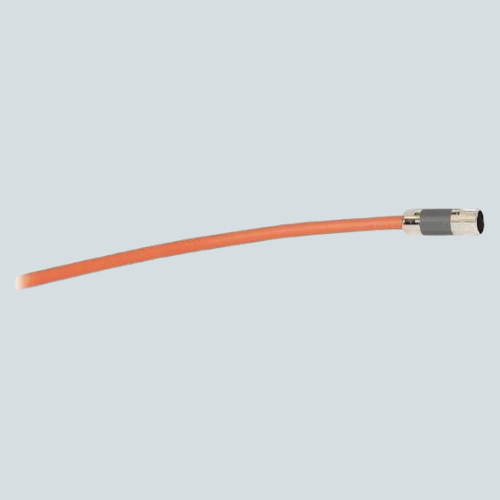

Overview of Allen-Bradley 2090-CPWM7DF-16AA60 SpeedTEC Motor Power Cable

The Allen-Bradley 2090-CPWM7DF-16AA60 is a SpeedTEC motor power cable designed for MP-Series servo drives. Measuring 60 meters in length, this cable comes with a 16 AWG conductor size and features a SpeedTEC DIN connector on the motor end with flying-lead on the drive end. It is a standard non-flex cable suitable for reliable power transmission in industrial servo applications.

Key Features

• SpeedTEC motor power cable: Designed specifically for MP-Series servo drives.
• 16 AWG conductor size: Supports the typical current load for industrial servo motors.
• 60-meter length: Ideal for extended motor-to-drive connections.
• Standard (non-flex) design: Durable for fixed installations without continuous bending.
• Motor end SpeedTEC DIN connector: Ensures secure and standardized motor connection.
• Drive end flying-lead: Allows easy and flexible wiring to drive units.
• 600V voltage rating: Suitable for industrial power levels.
• Non-repairable: Replacement required if damaged to maintain system integrity.

Technical Specs

Parameter	Specification
Model Number	2090-CPWM7DF-16AA60
Cable Type	SpeedTEC Motor Power Only
Conductor Size	16 AWG
Cable Length	60 meters
Connector Type (Motor End)	SpeedTEC DIN Connector
Connector Type (Drive End)	Flying-lead
Flexibility	Standard (Non-Flex)
Voltage Rating	600 Volts
Current Rating	8 Amps
Number of Conductors	4
Cable Jacket	Industrial-grade Thermoplastic Elastomer (TPE)

Applications / Use Case

This cable is used for industrial servo motor power connection in motion control systems requiring reliable power delivery over long distances. It is suitable for industrial automation environments where stable, high-quality connections are essential.

Allen-Bradley products are manufactured by Rockwell Automation and comply with industry performance and safety standards.
