2090-CPWM7DF-16AA03

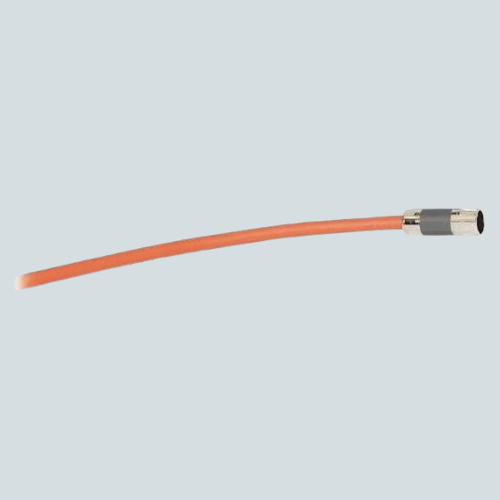

Overview of Allen-Bradley 2090-CPWM7DF-16AA03 SpeedTEC Motor Power Cable

The Allen-Bradley 2090-CPWM7DF-16AA03 is a SpeedTEC motor power cable designed for industrial servo drive systems. It features a 16 AWG conductor and a length of 3 meters. The cable comes with a SpeedTEC DIN connector on the motor end and flying-lead on the drive end with a continuous flex design, making it suitable for flexible motion applications requiring reliable power transmission.

Key Features

• SpeedTEC motor power cable: Provides power-only connection between servo drives and motors.
• 16 AWG conductor size: Supports moderate current loads typical for servo motor operation.
• 3-meter length: Convenient for close motor-drive connections.
• Continuous flex design: Suitable for dynamic applications with cable movement.
• Motor-end SpeedTEC DIN connector: Ensures secure and standardized connection.
• Drive-end flying-lead: Allows flexible wiring to drive units.
• Non-repairable: Ensures cable integrity by replacing damaged cables.

Technical Specs

Parameter	Specification
Model Number	2090-CPWM7DF-16AA03
Cable Type	SpeedTEC Motor Power Only
Conductor Size	16 AWG
Cable Length	3 meters
Design	Continuous Flex
Motor End Connector	SpeedTEC DIN
Drive End Connector	Flying-lead
Flexibility	Continuous Flex
Repairable	No

Applications / Use Case

This cable is used for dynamic servo motor power connections in motion control systems where cable flexibility and reliability are essential. It supports precise industrial automation applications requiring durable motor cables.

Allen-Bradley products are manufactured by Rockwell Automation, known for compliance with industrial automation standards and quality assurance.
