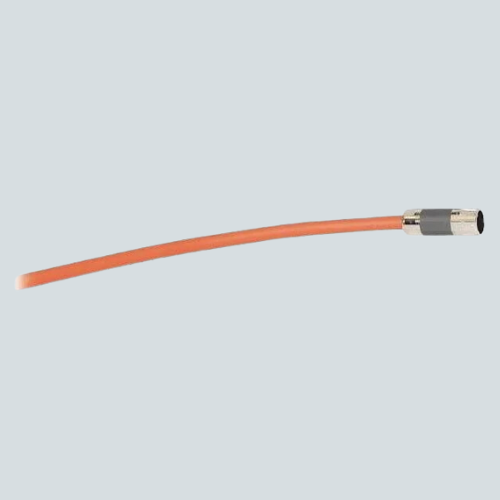

Overview of Allen-Bradley 2090-CPBM7DF-04AA05 Power and Brake Cable
The Allen-Bradley 2090-CPBM7DF-04AA05 is an industrial-grade power and brake cable designed for the Kinetix 2090 servo drive system. It is a standard, non-flex cable with 4 conductors, designed to provide power and brake signal transmission between the drive and servo motor. The cable features a durable outer jacket and is optimized for medium-duty industrial applications.
Key Features of Allen-Bradley - 2090-CPBM7DF-04AA05
- Conductor Count: 4 conductors for power and brake wiring.
- Wire Size: 18 AWG conductors providing reliable current rating.
- Cable Diameter: Approximately 28.8 mm (1.13 inches).
- Cable Weight: Approximately 202 g/m (7.9 oz/ft).
- Cable Type: Standard, non-flex cable suitable for stationary installations.
- Insulation and Jacket: Designed for industrial protection and durability.
- Continuous Bend Radius: Minimum 100 mm to avoid cable damage.
- Designed to meet or exceed industrial standards for reliability and performance.
Technical Specifications of 2090-CPBM7DF-04AA05
| Model Number | 2090-CPBM7DF-04AA05 |
| Conductor Count | 4 |
| Wire Gauge | 18 AWG |
| Cable Diameter | 28.8 mm (1.13 in) |
| Cable Weight | 202 g/m (7.9 oz/ft) |
| Cable Type | Standard Non-Flex |
| Bend Radius | 100 mm minimum |
| Application | Power and brake signal transmission for Kinetix 2090 servo systems |
Applications / Use Case
The 2090-CPBM7DF-04AA05 cable is used in Kinetix 2090 servo drive systems to provide reliable power and brake signal connectivity between drives and motors. It is suited for applications that require stationary wiring installations with medium mechanical stress and industrial robustness.
-
