20-750-NEMA1-F2

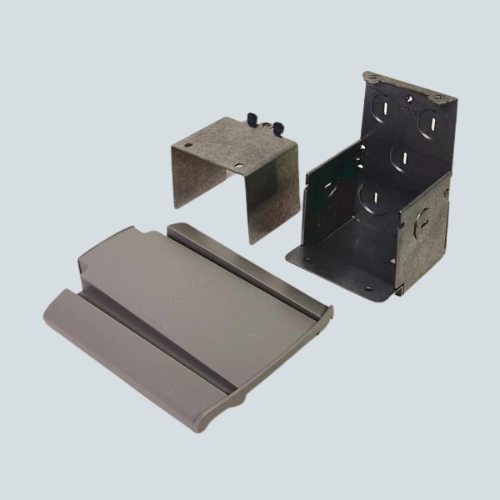

Overview of Allen-Bradley 20-750-NEMA1-F2 NEMA 1 Enclosure Kit

The Allen-Bradley 20-750-NEMA1-F2 is a NEMA Type 1 enclosure kit designed for PowerFlex 750-Series AC drives, specifically compatible with Frame 2 models. This kit allows the conversion of an open-frame drive to a NEMA 1 rated enclosure, providing protection against dust and light contact while meeting UL and NEMA standards. It supports surface mounting and makes the drive suitable for industrial applications requiring NEMA 1 protection.

Key Features

• NEMA 1 enclosure kit: Converts open-frame PowerFlex 750 drives to NEMA Type 1 enclosure.
• Frame 2 compatibility: Designed for PowerFlex 750 drives, Frame 2 size.
• Surface mounting: Easy installation on standard industrial equipment setups.
• Provides protection: Shields drive components from dust, dirt, and incidental contact.
• Meets UL and NEMA standards: Ensures compliance with North American safety requirements.
• Includes all necessary hardware: Conduit box and cover included for a complete enclosure solution.

Technical Specs

Parameter	Specification
Model Number	20-750-NEMA1-F2
Compatible Drive Frame	PowerFlex 750 Frame 2
Enclosure Type	NEMA Type 1 / UL Type 1
Mounting	Surface Mount
Protection	Dust and light contact (NEMA 1)
Included Components	Conduit box, cover, hardware
Standards	UL, NEMA

Applications / Use Case

This enclosure kit is ideal for industrial environments requiring drives with NEMA 1 protection to guard against dust and incidental contact while maintaining accessibility for maintenance and operation.

Allen-Bradley products are supported by Rockwell Automation’s commitment to quality, safety, and compliance.
