20-750-MI1-C770D740

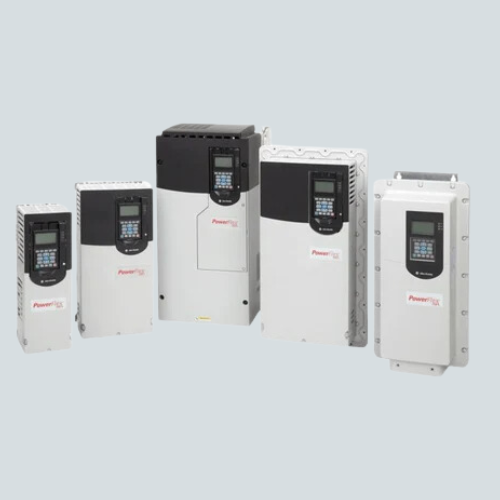

Overview of Allen Bradley 20-750-MI1-C770D740

The Allen Bradley 20-750-MI1-C770D740 is a high-capacity IGBT power module designed for integration into PowerFlex 750-Series drive kits. This module is engineered for demanding industrial environments where reliable, scalable, and precise motor control is essential. Operating at 400V AC (770A) or 480V AC (740A), it provides robust performance for applications requiring large drive solutions. Built to IP00 standards, the 20-750-MI1-C770D740 is intended for panel-based installations and supports advanced TotalFORCE control technology for smooth, responsive motor operation. Its modular design simplifies maintenance and service, making it a practical choice for engineers looking to maximize uptime and operational efficiency.

Key Features of Allen Bradley 20-750-MI1-C770D740

• High-performance IGBT power structure for PowerFlex 750 drive kits
• Rated for 400V AC at 770A and 480V AC at 740A for heavy-duty applications
• Compatible with IP00 open-type frame installations
• Supports advanced TotalFORCE motor control technology for precise speed and torque regulation
• Modular, roll-in design for easy installation and maintenance
• Active lifecycle status with Australian RCM and CE certifications for global compliance
• Designed for industrial automation systems requiring large drive solutions
• Scalable for integration into complex motor control architectures
• Optimized for high power density and efficient thermal management

Technical Specs of 20-750-MI1-C770D740

Applications / Use Case

The Allen Bradley 20-750-MI1-C770D740 is ideal for heavy industrial applications where powerful, reliable motor control is critical. Typical use cases include large pumps, heavy conveyors, extruders, and other high-inertia machinery found in water treatment, mining, and manufacturing industries. Its high current capacity and modular design make it suitable for retrofitting existing automation systems or building new, scalable drive architectures. Engineers and system integrators choose this module for its proven performance under demanding conditions, ease of integration, and compatibility with the broader PowerFlex 750 platform. When paired with Rockwell Automation control systems, the 20-750-MI1-C770D740 helps optimize energy efficiency, reduce downtime, and enhance process reliability across a wide range of industrial settings.
