Buy Allen-Bradley 1794-IB16 – Product Overview

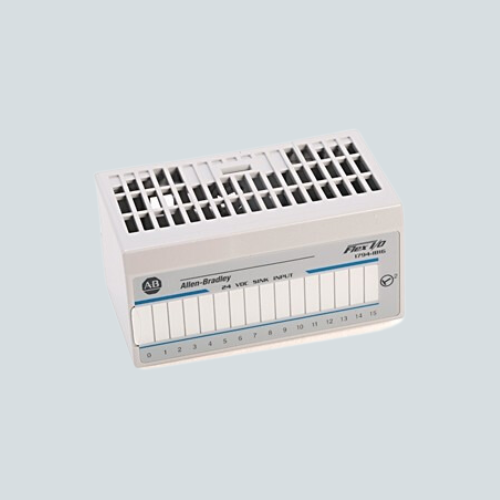

The Allen-Bradley 1794-IB16 is a 16-point digital input module designed for the FLEX I/O system, delivering reliable current-sinking inputs rated for 24V DC nominal operation. This industrial-grade component provides Removal and Insertion Under Power (RIUP) capability, allowing module replacement without system shutdown. Engineered for demanding automation environments, the 1794-IB16 integrates seamlessly into PLC control systems and distributed I/O architectures across North America, Europe, and global industrial markets.
Allen-Bradley 1794-IB16 Features & Benefits
- 16 current-sinking digital inputs with 24V DC nominal voltage
- Input voltage range of 10–31.2V DC for flexible sensor compatibility
- On-state minimum voltage of 19.2V DC; maximum 31.2V DC
- Hot-swap capability via RIUP technology—no system downtime required
- DIN rail mounting for compact panel integration
- 16 yellow status indicator LEDs for real-time diagnostic feedback
- Low current draw: 30 mA @ 5V DC on Flexbus
- Maximum power dissipation of 6.1W @ 31.2V DC
Allen-Bradley 1794-IB16 Specifications & Datasheet
| Attribute | Value |
|---|---|
| Digital Inputs | 16, current sinking |
| Power Supply | 24V DC |
| On-State Voltage (Min) | 19.2V DC |
| On-State Voltage (Max) | 31.2V DC |
| Off-State Voltage (Max) | 5V DC |
| Off-State Current (Max) | 1.5 mA |
| Operating Temperature | 0–55°C (32–131°F) |
| Power Dissipation (Max) | 6.1W @ 31.2V DC |
| Thermal Dissipation (Max) | 20.8 BTU/hr @ 31.2V DC |
| Input Impedance | 4.6 kΩ |
| Mounting | DIN Rail |
Review the official Allen-Bradley 1794-IB16 datasheet and installation instructions to ensure full compatibility with your terminal base and control system before installation.
Allen-Bradley 1794-IB16 Applications in Industrial Automation
The 1794-IB16 is commonly deployed in factory control panels, machine automation systems, production line monitoring, and distributed motion control architectures. Its 16-point sinking input capability makes it ideal for sensor integration in conveyor systems, assembly operations, and real-time process control applications. Compatible terminal bases include the 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, and 1794-TB37DS, supporting flexible configuration across industrial environments worldwide.
