Buy Allen-Bradley 1794-TB3GS – Product Overview

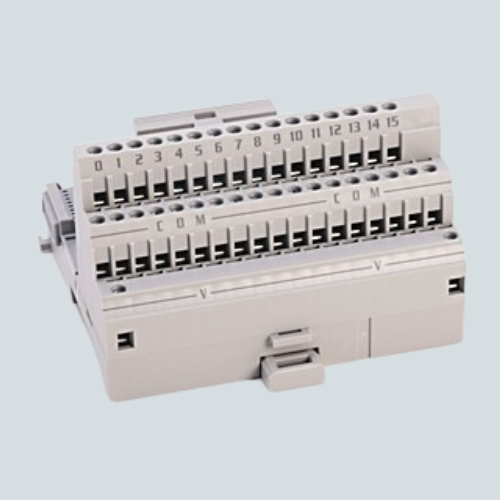

The Allen-Bradley 1794-TB3GS is a FLEX I/O Terminal Base Unit designed for industrial automation and process control applications. This grounded spring clamp terminal base provides 36 I/O connections with 2 common terminals, 2 +V terminals, and 10 chassis ground terminals. It eliminates the need for separate terminal strips, reducing space requirements and simplifying wiring from sensors directly to the base unit. With an open-style, DIN-rail mountable design, this component is suitable for panel and field installations across North America, Europe, and international industrial markets.

Allen-Bradley 1794-TB3GS Features & Benefits

Spring clamp termination for secure, reliable connections without tool changes. Grounded configuration ensures proper signal integrity in analog module applications. Compact dimensions (94 x 94 x 69 mm) optimize enclosure space. Supports wire sizes 0.34–3.3 mm² (22–12 AWG) with strip lengths of 5–6 mm. Terminal screw torque specification of 0.56–0.79 N•m (5–7 lb•in) ensures consistent, damage-free installations. Meets international standards including CE, CSA, CUL, and UL certification for global compliance.

Allen-Bradley 1794-TB3GS Specifications & Datasheet

Specification Value
Catalog Number 1794-TB3GS
Termination Type Grounded Spring Clamp
I/O Connections 36 I/O; 2 common; 2 +V; 10 chassis ground
Mounting Type DIN-Rail, Panel
Dimensions (H×W×D) 94 × 94 × 69 mm
Wire Gauge 22–12 AWG solid or stranded copper
Certifications CE, CSA, CUL, UL, MARINE, GOST, KC, CCC, C-TICK

Allen-Bradley 1794-TB3GS Applications in Industrial Automation

This terminal base is commonly used in industrial automation, process control, machine automation, and production line systems worldwide. It pairs with FLEX I/O analog modules to enable direct sensor-to-base wiring in factory control panels and motion control systems. The grounded spring clamp design makes it ideal for analog signal applications requiring noise rejection and signal stability in harsh industrial environments across Canada, the United States, and international industrial markets.

Allen-Bradley 1794-TB3GS Price & Worldwide Availability

View Allen-Bradley 1794-TB3GS pricing and stock status online with global dispatch. LeadTime.ca is a trusted supplier in Canada and the United States, offering export-ready automation components with fast worldwide shipping. Availability and pricing vary by region and order volume; contact us for bulk export pricing and real-time stock updates.

Why Buy Allen-Bradley Products from LeadTime.ca

All products on LeadTime.ca are genuine, authentic original OEM components sourced from verified suppliers. Every item is factory-tested and available for fast worldwide shipping across North America, Europe, Asia, and international industrial markets. We specialize in FLEX I/O automation components and provide dedicated support for technical specifications, installation guidance, and supply chain solutions.
