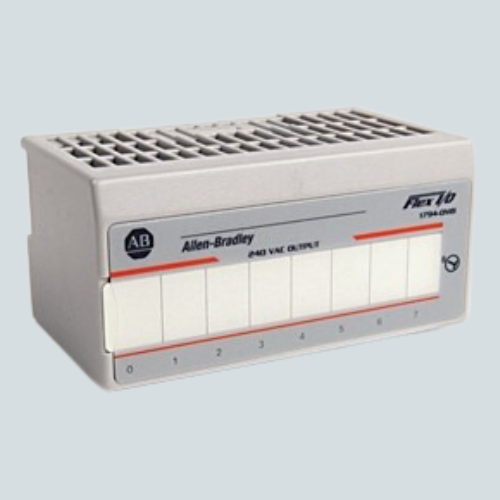

Overview of Allen-Bradley 1794-OM8

The Allen-Bradley 1794-OM8 is an 8-point distributed AC output module designed for the FLEX I/O system. It delivers reliable switching of 220V AC loads in industrial automation applications. This module features non-isolated outputs with a current rating of 500mA per output and supports a wide voltage range from 159V to 264V AC. It is suitable for panel or DIN rail mounting in factory automation environments.

Key Features of Allen-Bradley 1794-OM8

  • 8 AC Outputs: Controls up to 8 discrete loads with 500mA output current per channel.
  • Wide Voltage Range: Operational from 159 V AC to 264 V AC for flexibility in power supply.
  • High Surge Current: Supports up to 7A surge current for 40ms, repeating every 8 seconds.
  • Open-Style Enclosure: Designed for easy panel or DIN rail mounting.
  • Status Indicators: 8 yellow LED outputs for channel status and diagnostics.
  • Certifications: Compliant with UL, CSA, CE, C-TICK, KC, and GOST standards.

Technical Specs of Allen-Bradley 1794-OM8

Specification Details
Number of Outputs 8, non-isolated
Output Voltage 159 - 264 V AC (Nominal 240 V AC)
Output Current Rating 500 mA per output at 55°C
Surge Current 7 A for 40 ms, repeatable every 8 seconds
Power Dissipation 5.0 W max @ 0.5 A
Operating Temperature 0°C to 55°C (32°F to 131°F)
Dimensions (HxWxD) 94 x 94 x 69 mm (3.7 x 3.7 x 2.7 in)
Mounting DIN rail or panel mount
Enclosure Open style (IP20)

Applications / Use Case

The 1794-OM8 output module is ideal for switching industrial AC loads such as pilot lights, valves, and other control devices within automation systems. It is widely used in manufacturing, process control, and machine automation where reliable AC output switching is required.

Allen-Bradley products are supported with comprehensive warranty and technical assistance from Rockwell Automation.
