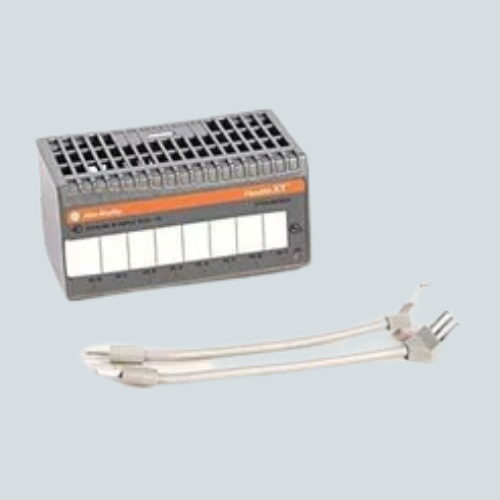

Overview of Allen-Bradley 1794-IF41XT

The Allen-Bradley 1794-IF41XT is an isolated analog 4-input module designed for the FLEX I/O-XT series, suitable for industrial applications requiring high accuracy temperature and voltage measurement. It supports thermocouples, RTDs, and voltage inputs, and is built to operate in extreme temperature ranges from -40°C to 70°C. This module offers precise measurement capabilities with robust diagnostics and easy integration with Allen-Bradley control systems.

Key Features of Allen-Bradley 1794-IF41XT

  • High Accuracy Inputs: Supports thermocouple, RTD, and voltage signals with accurate measurement.
  • Isolation: Channel-to-channel isolation improves noise immunity and signal integrity.
  • Extreme Temperature Range: Operates reliably between -40°C and 70°C.
  • Diagnostic Indicator: LED status indicator for module diagnostics and health monitoring.
  • Plug-and-Play: Compatible with various terminal bases for flexible installation.
  • Factory Calibrated: Ready for use with option for field calibration.

Technical Specs of Allen-Bradley 1794-IF41XT

Specification Details
Number of Inputs 4 isolated analog inputs
Input Types Thermocouples, RTDs 2-, 3-, 4-wire, and voltage input
Input Voltage Range ±10V, 0-10V (configurable)
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Input Protection 30V continuous, 32 mA continuous overload per channel
Power Supply 24V DC nominal (19.2 to 31.2V DC)
Power Dissipation Approx. 3.0W at 31.2V DC
Dimensions (HxWxD) 46 mm x 94 mm x 53 mm (1.8 in x 3.7 in x 2.1 in)
Enclosure Open-style (no enclosure)

Applications / Use Case

The 1794-IF41XT is ideal for process control environments needing precise temperature or voltage measurement in extreme conditions. It is widely used in manufacturing, chemical processing, and other industrial sectors requiring reliable analog input data.

Allen-Bradley products are supported by Rockwell Automation with warranty and technical support.
