Buy Allen-Bradley 1791ES-IB8XOBV4 – Product Overview

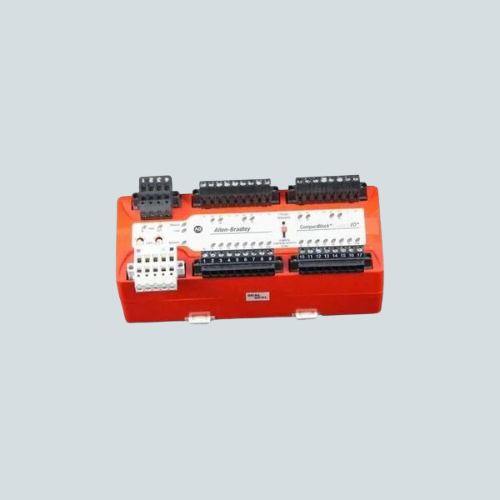

The Allen-Bradley 1791ES-IB8XOBV4 is a Guard I/O EtherNet/IP Safety CompactBlock module designed for industrial automation and process control applications. This 16-point digital I/O expansion block combines 8 safety inputs with 4 dual-channel bipolar outputs, delivering reliable real-time control in demanding factory environments. Engineered for seamless integration into CompactBlock I/O systems, the 1791ES-IB8XOBV4 provides the flexibility to expand your automation infrastructure with certified safety functionality across North America, Europe, Asia, and global industrial markets.
Allen-Bradley 1791ES-IB8XOBV4 Features & Benefits
- 8 single-channel safety inputs with 11V DC minimum on-state voltage
- 4 dual-channel bipolar current sourcing/sinking outputs (0.7A per point; 8A total @ 40°C)
- EtherNet/IP communication for real-time industrial networking
- Integrated short-circuit detection and electronic protection on all outputs
- Individual point and combined status monitoring for safety inputs and outputs
- Compact dimensions (80 × 196 × 77mm) for space-constrained control panels
- Operating voltage range: 19.2–28.8V DC with 250mA power consumption
- Multi-certification: TUV, ODVA Safety, CE, UL Listed, Australian RCM, Korean KC
Allen-Bradley 1791ES-IB8XOBV4 Specifications & Datasheet
| Specification | Value |
|---|---|
| Communication Protocol | EtherNet/IP |
| Input Type | Single-Channel Safety (8 points) |
| Output Type | Bipolar Current Sourcing/Sinking (4 dual-channel) |
| Power Supply | 24V DC (19.2–28.8V DC operating range) |
| Output Current Rating | 2A max per point; 8A total @ 40°C / 6A @ 60°C |
| Temperature Rating | −20 to 60°C (−4 to 140°F) |
| Dimensions | 80 × 196 × 77mm (3.2 × 7.7 × 3 inches) |
| Weight | 600g (0.62 kg / 1.32 lbs) |
| Leakage Current | ±1mA (bipolar outputs) |
| On-State Voltage Drop | ±0.6V |
Allen-Bradley 1791ES-IB8XOBV4 Applications in Industrial Automation
This module is commonly used in industrial automation, process control, machine automation, production line systems, factory control panels, and motion control systems worldwide. The 1791ES-IB8XOBV4 excels in safety-critical environments where real-time I/O expansion, fault detection, and certified EtherNet/IP connectivity are essential for reliable plant operations.
Allen-Bradley 1791ES-IB8XOBV4 Price & Worldwide Availability
Check Allen-Bradley 1791ES-IB8XOBV4 pricing, stock status, and availability online with global dispatch for bulk orders and real-time updates. The module is currently stocked with a 22-day lead time and is repairable through authorized Rockwell Automation channels, ensuring long-term system support and component lifecycle management for your industrial automation investment.
