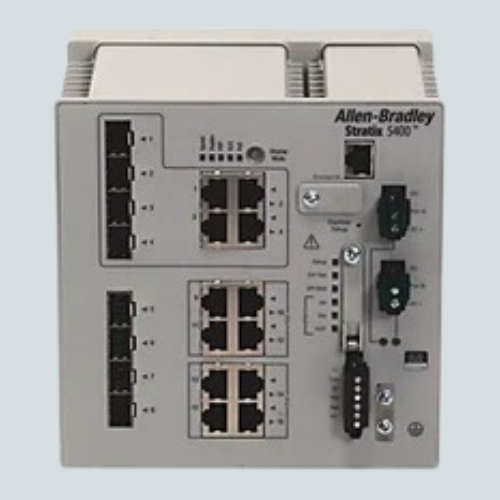

Overview of Allen Bradley 1783-HMS4SG8EG4CGN
The Allen Bradley 1783-HMS4SG8EG4CGN is a Stratix 5400 industrial managed Ethernet switch engineered to deliver high-performance network solutions for demanding automation environments. It features a total of 16 ports combining 4 SFP (Small Form-factor Pluggable) slots supporting 10/100/1000 Mbps fiber connections, 8 Power over Ethernet (PoE) ports offering 10/100/1000 Mbps, and 4 combo ports allowing either copper or SFP fiber connectivity at 10/100/1000 Mbps. This Layer 2 switch supports advanced networking capabilities, including Device Level Ring (DLR) with three-ring support, providing enhanced network redundancy and flexibility. Designed for DIN rail mounting, it operates reliably within a wide temperature range of -40 to 70 °C, making it suitable for rugged industrial environments. The 1783-HMS4SG8EG4CGN balances scalability, ease of integration, and network performance for critical industrial automation systems.Key Features of Allen Bradley 1783-HMS4SG8EG4CGN
- 16 Total Ports: 4 SFP fiber, 8 PoE IEEE 802.3at ports, 4 combo copper/SFP ports
- Layer 2 managed switch with advanced networking capabilities for industrial Ethernet
- Supports Device Level Ring (DLR) protocol with three-ring redundancy for network reliability
- All Gigabit Ethernet platform enabling high-speed data transfer across network
- Power over Ethernet (PoE) ports supply power and data on a single cable for connected devices
- Combo ports provide flexible connectivity options supporting copper or fiber interfaces
- DIN rail mounting for convenient installation in industrial control panels
- Wide operating temperature range: -40 to 70 °C (-40 to 158 °F)
- Certified with CE, CUL, KC, RCM, and UL standards ensuring safety and compliance
Technical Specs of 1783-HMS4SG8EG4CGN
| Feature | Specification |
|---|---|
| Ethernet Ports | 4 SFP 10/100/1000, 8 PoE 10/100/1000, 4 combo copper/SFP 10/100/1000 |
| PoE Standard | IEEE 802.3at (PoE+) |
| Layer | Layer 2 Managed Switch |
| Network Protocols | Device Level Ring (DLR), Spanning Tree Protocol |
| Mounting | DIN Rail |
| Operating Temperature | -40 to 70 °C (-40 to 158 °F) |
| Certifications | CE, CUL, KC, RCM, UL |
| Power Supply | Supports PoE Powered Devices |
Applications / Use Case
The Allen Bradley 1783-HMS4SG8EG4CGN is ideal for industrial automation networks requiring scalable, reliable, and secure Ethernet connectivity. It is widely used in factory automation, manufacturing lines, robotics, and process control systems where high-speed gigabit communication is essential. Its PoE ports support powering devices such as IP cameras, wireless access points, and industrial sensors directly through the network cable, minimizing cabling complexity and installation costs. The integrated Device Level Ring enhances network fault tolerance, making it suitable for applications that demand continuous uptime and fast recovery. The switch’s flexible combo ports enable connection to both copper and fiber networks, facilitating integration in various industrial network topologies including cell/area zones. Overall, it supports robust communication in harsh industrial environments, ensuring optimal network performance for mission-critical processes.Related Resources
-
