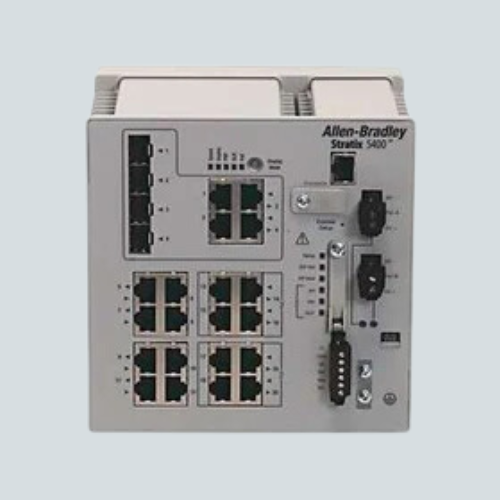

Overview of Allen-Bradley 1783-HMS16T4CGN Stratix 5400 Managed Industrial Ethernet Switch

The Allen-Bradley 1783-HMS16T4CGN is a high-performance Stratix 5400 industrial managed Ethernet switch designed for demanding industrial network applications. It features 16 copper 10/100 ports and 4 combo 10/100/1000 ports (supporting copper or SFP fiber connections) with Layer 2 switching firmware. This switch supports advanced networking features including Layer 3 routing, Power over Ethernet (PoE), and IEEE 1588 precision time protocol for accurate network synchronization.

Key Features of Allen-Bradley - 1783-HMS16T4CGN

  • Ports: 16 copper 10/100 Mbps ports and 4 combo 10/100/1000 Mbps (Gigabit) ports for versatile connectivity.
  • Layer 2 Switching and Layer 3 Routing: Supports complex network topologies and routing capabilities.
  • Power over Ethernet (PoE) Support: Enables powering of network devices like IP cameras and VoIP phones directly through Ethernet cabling.
  • IEEE 1588 Power Profile Support: Provides precise timing synchronization for industrial applications.
  • NetFlow Compatibility: Supports traffic analysis and network monitoring.
  • Express Setup Button: Simplifies initial configuration.
  • Alarm Inputs: Supports 1 or 2 alarm inputs for monitoring external devices or network events.
  • Management: Configurable via console port (RJ45 or USB), supports device manager and Logix manager applications.
  • Mounting: DIN rail mounting for installation in control panels.
  • Robust Design: Industrial-grade design suitable for harsh factory environments.

Technical Specs of 1783-HMS16T4CGN

Model 1783-HMS16T4CGN
Brand Allen-Bradley
Series Stratix 5400
Number of Ports 20 (16 copper 10/100 + 4 combo 10/100/1000)
Layer Layer 2 Switching and Layer 3 Routing
PoE Support Yes
IEEE 1588 Support Power Profile Supported
Management Port Console (RJ45-to-DB9 or USB)
Alarm Inputs 1 or 2 Inputs
Mounting DIN Rail
Power Input 24V DC (18-60V DC), 18-30V AC, 50/60 Hz
Operating Temperature -40°C to +70°C
Dimensions Approx. 114.5 mm H x 29.6 mm W x 76.8 mm D

Applications / Use Case

Ideal for complex industrial Ethernet networks, the 1783-HMS16T4CGN industrial managed switch is used in manufacturing automation, process control, and factory data communications. It provides reliable high-speed data transfer, device power distribution, and network management in harsh industrial environments.
