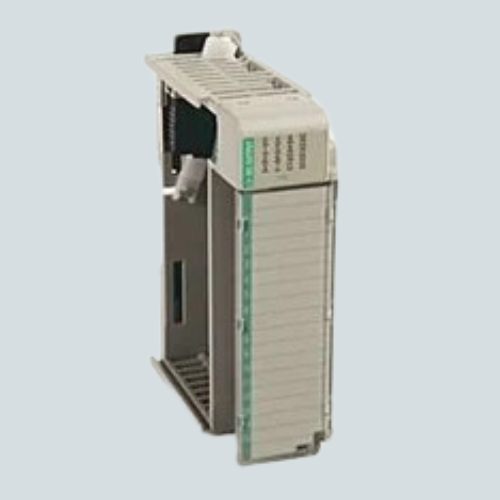

1769-OG16

In Stock
$358.96
$358.96
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below

Buy Allen-Bradley 1769-OG16 – Product Overview

Order genuine Allen-Bradley 1769-OG16 online today with fast global shipping. This CompactLogix 16-point 5V TTL digital output module from Rockwell Automation delivers reliable low-voltage control for industrial automation systems. As a trusted supplier in Canada and the United States, LeadTime.ca offers this worldwide industrial parts distributor favorite for export-ready automation components.

Allen-Bradley 1769-OG16 Features & Benefits

The Allen-Bradley 1769-OG16 provides 16 channels of 5V TTL output with on-state at 0-0.4V DC and off-state at 4.5-5.5V DC, ensuring precise digital signaling. Key benefits include high isolation (1200V AC @ 2s or 1697V DC @ 2s), compact design for DIN rail or panel mounting, and compatibility with CompactLogix controllers. It supports solid wire 22-14 AWG and stranded 22-16 AWG (Cu-90°C), ideal for demanding environments with global shipping available.

Allen-Bradley 1769-OG16 Specifications & Datasheet

Explore the official Allen-Bradley 1769-OG16 specifications before installation to ensure compatibility. Key specs:

Attribute Details
Channels 16
Output Voltage 4.5…5.5V DC (50mV ripple max)
On-State 0…0.4V DC
Off-State 4.5…5.5V DC
Isolation 1200V AC @ 2s or 1697V DC @ 2s
Current per Point 24mA max
Wire Size 22…14 AWG solid / 22…16 AWG stranded
Enclosure Open

Current draw @ 5.1V: 200mA. Operating temp: 0…60°C.

Allen-Bradley 1769-OG16 Applications in Industrial Automation

This Allen-Bradley 1769-OG16 is commonly used in machine automation worldwide, including CompactLogix systems, MicroLogix 1500 expansion, factory control panels, and motion control systems. Perfect for precise TTL signaling in production line systems as export-ready automation components.

Allen-Bradley 1769-OG16 Price & Worldwide Availability

Get updated on Allen-Bradley 1769-OG16 pricing with real-time updates for bulk orders. Available now from your worldwide industrial parts distributor with global shipping to North America, Europe, and Asia.

Why Buy Allen-Bradley Products from LeadTime.ca

Every product on LeadTime.ca is genuine original OEM, sourced from verified suppliers, and available for fast worldwide shipping across North America, Europe, Asia, and international industrial markets. As a supplier in Canada and the United States, we specialize in export-ready automation components.
