1769-IQ32T (24VCC)
1769-IQ32T (24VCC)
Manufacturer: ALLEN BRADLEY
Condition: New and Unused, Surplus.

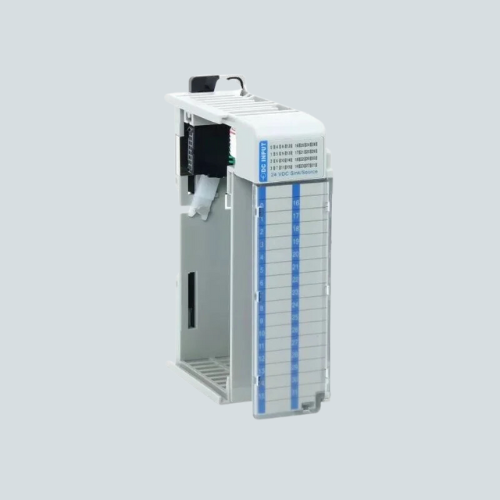

Overview of Allen Bradley 1769-IQ32T
The Allen Bradley 1769-IQ32T is a 32-point 24V DC digital input module designed for the CompactLogix control system. This single-wide module provides high-density, reliable sensing for industrial automation applications. It supports both sinking and sourcing field devices, making it versatile for diverse plant wiring schemes. Built for durability, the 1769-IQ32T offers integrated status LEDs for quick diagnostics and is compatible with MicroLogix 1500 and CompactLogix controllers. Typical use cases include packaging, material handling, and machine control where fast, accurate input monitoring is essential. With its compact footprint, the 1769-IQ32T helps maximize panel space without sacrificing performance or flexibility.
Key Features of Allen Bradley 1769-IQ32T
- 32 high-speed 24V DC digital inputs in a single wide module
- Supports both sinking and sourcing input wiring
- Operating voltage range: 20.4–26.4V DC (up to 60°C)
- Status LEDs for each input point
- Input point to bus and group to group isolation for noise immunity
- Four input groups (8 inputs per group)
- High dielectric strength: 1200V AC for 1s or 1697V DC for 1s
- 75V DC working voltage
- Digital input filtering with selectable off-to-on delay settings
- Durable, panel-mount or DIN rail installation
Technical Specs of 1769-IQ32T
| Specification | Detail |
|---|---|
| Input Points | 32 (4 groups of 8) |
| Input Type | 24V DC Sink/Source |
| Operating Voltage | 20.4–26.4V DC |
| Input Current | 5 mA per point |
| Bus Current Draw (max.) | 170 mA at 5V DC |
| Heat Dissipation | 4.77 W (all points energized) |
| Isolation | Point to bus, group to group |
| Dimensions | 118 x 35 x 87 mm |
| Weight | 0.97 lb (440 g) |
Applications / Use Case
The Allen Bradley 1769-IQ32T is ideal for applications requiring high-density digital input monitoring in a compact form factor. It is commonly used in discrete manufacturing, conveyor systems, assembly lines, and process control environments. The module’s ability to handle both sinking and sourcing devices simplifies integration with a wide range of sensors, switches, and field devices. Its robust isolation and built-in diagnostics help reduce downtime in demanding industrial settings. The 1769-IQ32T is a standard choice for expanding input capacity in CompactLogix and MicroLogix systems, offering reliable performance for safety, monitoring, and control tasks.
