Overview of Allen Bradley 1769-IF16C

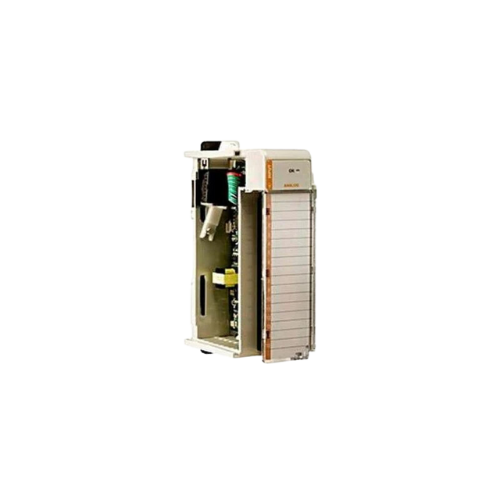

The Allen Bradley 1769-IF16C is a compact high-density analog input module designed for the CompactLogix system. It features 16 points of analog current input, making it suitable for a wide range of industrial applications where precise analog input data is required. This module offers DIN rail and panel mounting options, providing flexibility in installation. With an operational temperature range of 0 to 60 degrees Celsius, it can be used in various environments. The module is built with IEC reinforced insulation, ensuring durability and safety by meeting specific isolation voltage standards.

Key Features of Allen Bradley 1769-IF16C

- **Input Signal Range**: Supports 0...20 mA and 4...20 mA input signals. - **Mounting Options**: Compatible with both DIN rail and panel mounting. - **Operating Temperature**: Functional between 0 and 60 degrees Celsius. - **Isolation Voltage**: Provides 30V DC isolation; tested at 710V DC and 500V AC for 1 minute. - **Communication**: Part of the Compact I/O system, communicating with CompactLogix controllers. - **Power Consumption**: Consumes 33.6 watts of power. - **Status Indicators**: Features status LEDs for monitoring module operation.

Technical Specs of 1769-IF16C

Parameter Specification
Module Type 16 Point Analog Current Input Module
Input Type Analog Input
Backplane Current 1.4 Amps at 24 Volts
Power Consumption 33.6 Watts
Power Dissipation 7.5 Watts
Isolation Voltage 30 Volts DC
Mounting Style DIN Rail, Panel Mount
Shipping Weight Approximately 0.62 pounds

Applications / Use Case

The Allen Bradley 1769-IF16C module is ideal for applications requiring multiple analog inputs within industrial automation systems. It is commonly used in process control, monitoring systems, and machinery where precise analog data feedback is crucial. The module's compact design and high-density input capabilities make it suitable for installations where space is limited.
