Buy Allen Bradley 1756SC-IF8U – Product Overview

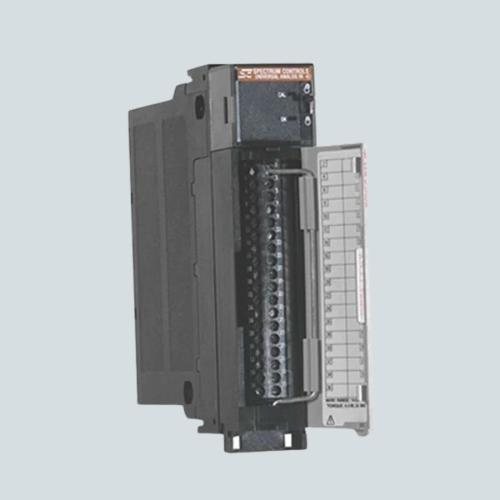

The Allen Bradley 1756SC-IF8U is a universal 8-channel analog input module engineered for ControlLogix 1756 I/O rack systems. This industrial-grade component consolidates voltage, current, thermocouple, and RTD/resistance monitoring into a single chassis-mounted module, eliminating the need for multiple dedicated input cards. Designed for process control and factory automation, the 1756SC-IF8U delivers reliable signal acquisition across diverse sensor types with cold-junction compensation and removal-and-insertion-under-power capability.
Allen Bradley 1756SC-IF8U Features & Benefits
Eight independently configurable input channels support 32 input types, including thermocouples (J, K, T, B, E, R, S, N, C), RTD sensors (PT385/3916, Ni618/672, NiFe518, Cu426), resistance measurement (250–4000 ohms), and analog signals (0–20 mA, voltage ranges). The module features high input impedance (greater than 1 MΩ for thermocouple and voltage; less than 250 ohm for current), dual cold-junction compensation sensors, and integrated current sources for RTD/resistance excitation. Common mode rejection of 96 dB at 50/60 Hz ensures noise immunity in industrial environments. Configured via RSLogix 5000 software, the module provides wire-off detection, over-range, and under-range indication for diagnostic reliability.
Allen Bradley 1756SC-IF8U Specifications & Datasheet
| Parameter | Value |
|---|---|
| Input Channels | 8 (voltage, current, thermocouple, or RTD) |
| Input Overvoltage Protection | 14.5 VDC continuous; 250 W pulsed (1 ms) |
| Input Overcurrent Protection | 28 mA continuous; 40 mA pulsed (1 ms, 10% duty) |
| Backplane Current Required | 230 mA at 5V; 75 mA at 24V maximum |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Thermal Dissipation | 3.0 watts maximum |
| Common Mode Rejection | 96 dB at 50/60 Hz |
Allen Bradley 1756SC-IF8U Applications in Industrial Automation
The 1756SC-IF8U is widely deployed in process control, machine automation, production line systems, factory control panels, and motion control applications. Its multi-input capability makes it ideal for temperature monitoring (thermocouples), resistance measurement, current signal acquisition, and voltage monitoring in manufacturing facilities across North America, Europe, and Asia. It is a core component for facilities requiring flexible, space-efficient analog signal processing without hardware reconfiguration.
