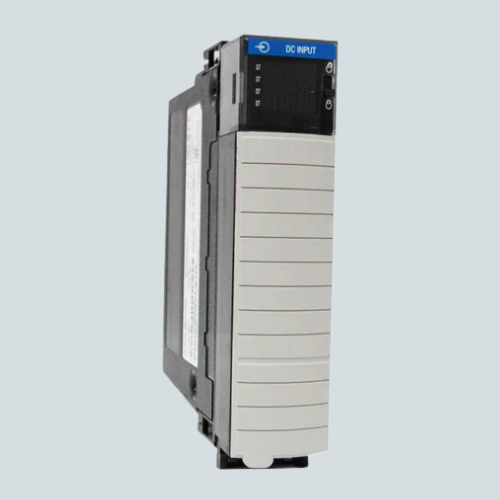

Overview of Allen Bradley 1756-IB32

The Allen Bradley 1756-IB32 is a high-density digital DC input module designed for ControlLogix automation systems. Featuring 32 sinking input channels divided into two groups of 16, it supports a voltage range from 10 to 31.2 V DC, with a nominal voltage of 24 V DC. This module provides reliable input detection with configurable filter settings to reduce noise and false signals.

Key Features of Allen Bradley 1756-IB32

  • 32 Sinking DC Input Channels: Divided into two groups for organized wiring and control.
  • Input Voltage Range: Supports 10 to 31.2 V DC for compatibility with standard industrial signals.
  • Configurable Filters: User-selectable filter times help mitigate noisy or erratic input signals.
  • Reverse Polarity Protection: Ensures module safety against wiring errors.
  • Backplane Power: Low power consumption for efficient operation in control systems.
  • Open Enclosure: Fits standard ControlLogix chassis with removable terminal blocks for easy wiring.

Technical Specs

Specification Details
Number of Inputs 32 sinking
Input Voltage Range 10 to 31.2 V DC
Nominal Voltage 24 V DC
Input Delay Time Off to On: 380 µs hardware delay + 0/1/2 ms filter;
On to Off: 420 µs hardware delay + 0/1/2/9/18 ms filter
Backplane Current Draw @ 5 V 120 mA
Backplane Current Draw @ 24 V 2 mA
Power Dissipation 6.2 W @ 60 °C
Dimensions (HxWxD) 5.51 x 18.11 x 21.89 cm
Weight 0.338 kg
Isolation 250 V reinforced inputs-to-backplane; 250 V basic group-to-group
Certifications UL, CE, ATEX, IECEx, RCM, and more

Applications / Use Case

The 1756-IB32 module is suitable for high-density, discrete input applications in industrial automation, including manufacturing, process control, and machine automation. Its configurable input filters and robust protection features allow for reliable operation in noisy environments.

Rockwell Automation backs this product with comprehensive support and industry certifications.
