1756IB16D

In Stock
$562.95
$562.95
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below

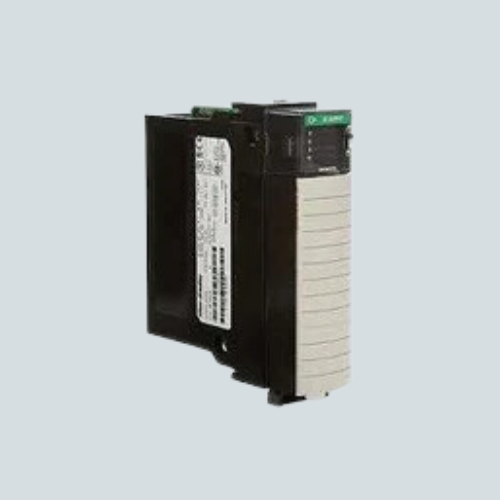

Overview of Allen-Bradley 1756-IB16D ControlLogix Digital Input Module

The Allen-Bradley 1756-IB16D is a 16-point DC digital input module for use with ControlLogix systems. It supports 10-30 V DC input signals, offers advanced diagnostics at the point level, and includes time-stamped fault reporting. The open-style module is designed to mount in a ControlLogix chassis and provides status indicators for inputs, faults, and communication health.

Key Features of Allen-Bradley - 1756-IB16D

  • 16 diagnostic inputs grouped into 4 groups of 4 points each for detailed fault detection.
  • Input Voltage Range: 10-30 V DC, with nominal operating voltage 12/24 V DC sink.
  • Diagnostic Features: Enhanced diagnostics with status LEDs for input state and fault indication.
  • Timestamp Accuracy: ±1 ms for precise event logging.
  • Mounting: Fits standard ControlLogix chassis slots.
  • Communication: Supports diagnostic and communication status via ControlLogix backplane.
  • Thermal Dissipation: 5.8 W max at 60°C operating temperature.
  • Operating Temperature: Up to 60°C (140°F).
  • Certification: UL, CSA, CE compliant.

Technical Specifications of 1756-IB16D

Model Number 1756-IB16D
Number of Inputs 16 (4 groups x 4 points)
Input Type DC Digital Input
Input Voltage Range 10-30 V DC
Mounting ControlLogix chassis slot
Power Dissipation 5.8 W max @ 60°C
Diagnostics Input status, fault, and communication health
Operating Temperature 0 to 60°C (32 to 140°F)
Communication Interface ControlLogix backplane

Applications / Use Case

The 1756-IB16D is widely used in industrial automation for monitoring digital input devices such as sensors and switches. Its advanced diagnostics and control compatibility make it ideal for process control, manufacturing, and other automated systems requiring precise input monitoring and troubleshooting.

1756IB16D

$562.95

  • ACHIEVING

    4.0

    average rating

  • With

    95%

    positive reviews

  • LESS THAN

    1%

    return rate

Does it come with a warranty?

Yes, All products are offered wth 1-Year warranty.

What is the condition of the product?

All products sold are New & Unused.

How fast is shipping?

All products are delivered within 2-8 business days depending on our stock location.
