1756-PBR2
1756-PBR2
Manufacturer: ALLEN BRADLEY
Condition: New and Unused, Surplus.
Overview of Allen Bradley 1756-PBR2

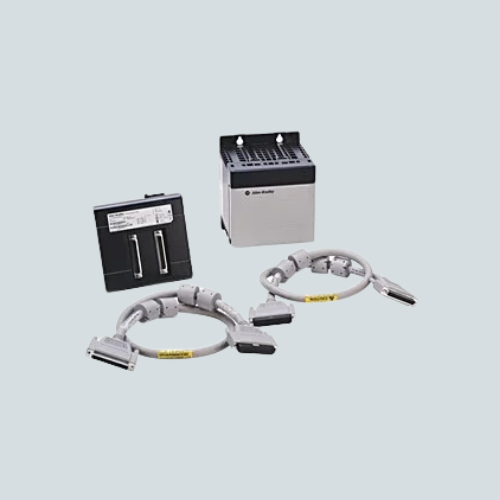

The Allen Bradley 1756-PBR2 is a ControlLogix redundant power supply kit designed to provide reliable DC power with redundancy for increased system uptime. It operates on a DC input voltage range of 19 to 32 V and offers a total output power of 75 watts. This kit includes two power supplies, two cables, and a chassis adapter to install in ControlLogix chassis for critical industrial automation applications.
Key Features of Allen Bradley 1756-PBR2
- Redundant Power Supply Kit: Contains two 75W power supplies to ensure continuous power availability.
- Wide Input Voltage Range: Operates from 19 to 32 V DC for flexible deployment.
- Multiple Voltage Outputs: Provides 5 V DC at 13 A, 3.3 V DC at 4 A, 1.2 V DC at 1.5 A, and 24 V DC at 2.8 A.
- Conformal Coating Option: Available for enhanced protection against environmental contaminants.
- Includes Connection Cables and Chassis Adapter: Ready for installation in ControlLogix chassis.
- Supports System Shutdown Signaling: Communicates imminent voltage failure for orderly shutdown.
Technical Specs
| Specification | Details |
|---|---|
| Input Voltage Range | 19 to 32 V DC |
| Maximum Output Power | 75 Watts |
| Output Voltage & Current | 5 V DC @ 13 A, 3.3 V DC @ 4 A, 1.2 V DC @ 1.5 A, 24 V DC @ 2.8 A |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Weight | Approx. 6.1 kg |
| Included Components | Two 1756-PB75R power supplies, two 1756CPR2 cables, one 1756PSCA2 chassis adapter |
| Enclosure Type | Open style (no enclosure) |
Applications / Use Case
The 1756-PBR2 redundant power supply kit is ideal for industrial control systems where uninterrupted power is critical. It is widely used in manufacturing, process automation, and safety-critical operations to maintain system stability and avoid downtime.
Rockwell Automation supports this product with industry compliance and technical assistance.
