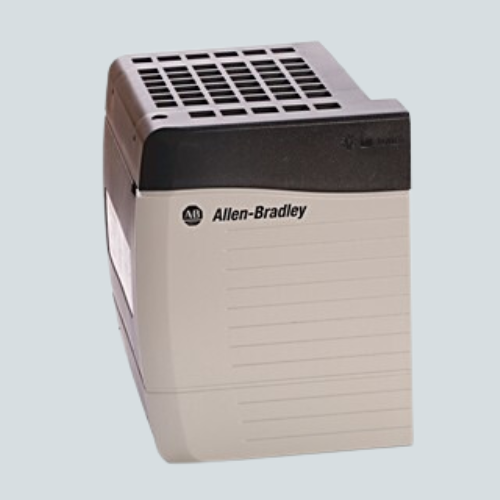

1756-PB75K
1756-PB75K
Manufacturer: ALLEN BRADLEY
Condition: New and Unused, Surplus.
Overview of Allen Bradley 1756-PB75K
The Allen Bradley 1756-PB75K is a ControlLogix DC power supply module delivering up to 75 watts of power. It operates within an input voltage range of 18 to 32 V DC and provides multiple output voltages including 5 V DC at 13 A and 24 V DC at 2.8 A. The module features a conformal coating for protection against moisture and contaminants, making it reliable for industrial automation environments.
Key Features of Allen Bradley 1756-PB75K
- Wide Input Voltage Range: Operates on 18-32 V DC for flexible deployment.
- High Power Output: 75 W max with 5 V DC at 13 A and 24 V DC at 2.8 A outputs.
- Conformal Coating: Protects against dust, moisture, and environmental hazards.
- Chassis Mount: Designed for easy installation in ControlLogix chassis systems.
- Compact Dimensions: Approximately 14 x 7.8 x 14.5 cm to fit standard ControlLogix slots.
- Thermal and Electrical Protection: Ensures safe operation under industrial conditions.
Technical Specs
| Specification | Details |
|---|---|
| Input Voltage Range | 18 to 32 V DC |
| Output Power | 75 watts max |
| Output Voltage and Current | 5 V DC @ 13 A, 24 V DC @ 2.8 A |
| Mounting | ControlLogix chassis |
| Dimensions (HxWxD) | 14.0 x 7.8 x 14.5 cm (5.51 x 3.07 x 5.71 in.) |
| Weight | Approx. 0.95 kg |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
Applications / Use Case
This power supply module is suitable for industrial automation systems requiring stable DC power, including manufacturing lines, process control, and factory automation. Its robust design and conformal coating make it well-suited for harsh environments.
Rockwell Automation supports the 1756-PB75K with full compliance to industry standards.
