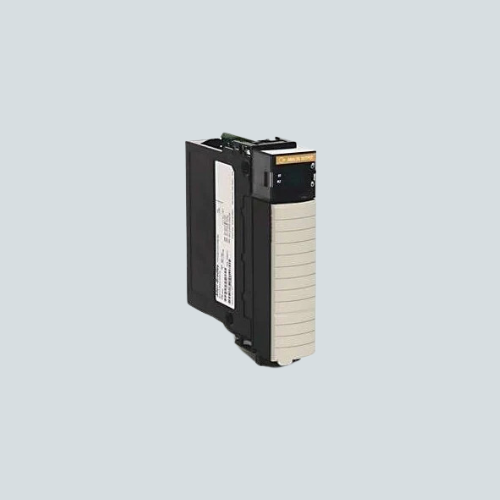

Overview of Allen-Bradley 1756-OF8IK

The Allen-Bradley 1756-OF8IK is an 8-point analog output module designed for use with ControlLogix systems. It supports output signals in voltage or current formats, providing precise analog control in industrial automation applications. The module features isolated outputs for enhanced noise immunity and reliability in complex control environments.

Key Features of Allen-Bradley - 1756-OF8IK

  • 8 Analog Output Channels: Each channel can be configured for voltage or current output, supporting versatile automation needs.
  • Isolated Outputs: Each output is galvanically isolated to prevent noise and ground loop issues, ensuring accurate signal integrity.
  • High Resolution: 15-bit digital-to-analog conversion resolution for precise control signals.
  • Short Circuit Protection: Built-in protection on outputs minimizes damage risks and downtime.
  • Diagnostic Feedback: Output status and diagnostics are accessible to enhance troubleshooting and maintenance.
  • User Configurable: Programmable output range and response time for customized control performance.
  • Compatibility: Designed to seamlessly integrate with Allen-Bradley ControlLogix automation systems.

Technical Specs of 1756-OF8IK

Number of Channels 8 Analog Outputs
Output Types Voltage (-10V to +10V) and Current (4-20 mA)
Conversion Resolution 15-bit
Output Isolation Galvanic isolation between outputs and backplane
Output Update Time 200 µs to 750 ms configurable
Voltage Range Max 10V output range
Current Range 4-20 mA output range
Power Dissipation 5.4 W at 60°C
Environmental Operating temperature 0 to 60°C, open style enclosure
Dimensions (HxWxD) 118.4 mm x 22.4 mm x 112.2 mm
Certifications UL, CE, CSA, CCC, KC

Applications / Use Case

The 1756-OF8IK module is ideal for precision analog control in manufacturing, process control, and automation systems requiring isolated and configurable output signals. It enables accurate control of actuators, valves, and other field devices within ControlLogix systems.

Allen-Bradley provides extensive technical support and certifications, ensuring the module’s reliability in critical industrial environments.
