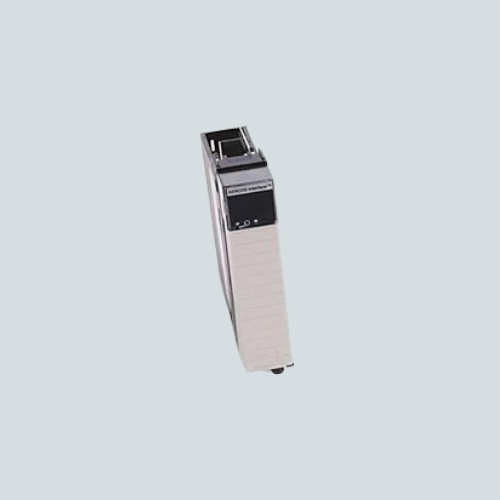

Overview of Allen-Bradley 1756-M08SE

The Allen-Bradley 1756-M08SE is a ControlLogix SERCOS Interface Module designed to interface ControlLogix systems with SERCOS multi-axis servo drives. It supports up to eight drives and enables data communication with speeds of 4 Mbps and 8 Mbps. The module is used for precise position, velocity, and torque control in industrial automation environments, specifically with Kinetix servo drives.

Key Features of Allen-Bradley 1756-M08SE

  • Drive Support: Up to 8 Kinetix drives using SERCOS protocol
  • Data Rates: 4 Mbps and 8 Mbps with various cycle time options
  • Control Modes: Supports position, velocity, and torque control
  • Compatible Chassis: Works with 1756-A4, A7, A10, A13, A17 ControlLogix chassis
  • Power Supply: Compatible with multiple standard and redundant power supplies
  • Power Consumption: 760 mA at 5.1V DC, 2.5 mA at 24V DC, 5W power dissipation
  • Operating Temperature: 0°C to 60°C
  • Shock and Vibration: Designed to withstand industrial environments

Technical Specs of 1756-M08SE

Module Type SERCOS Interface Module
Number of Axes Up to 8 drives
Data Rate 4 or 8 Mbps
Cycle Time (@ 4 Mbps) 0.5 ms (2 drives), 1 ms (4 drives), 2 ms (8 drives)
Cycle Time (@ 8 Mbps) 0.5 ms (4 drives), 1 ms (8 drives), 2 ms (16 drives)
Control Modes Position, velocity, torque
Operating Temperature 0°C to 60°C
Power Consumption 760 mA at 5.1V DC
Power Dissipation 5 W
Compatible Chassis 1756-A4, A7, A10, A13, A17

Applications / Use Case

The 1756-M08SE module is ideal for integration in advanced motion control systems requiring precise and synchronized position, velocity, and torque control of multiple servo drives. It is widely used in robotics, CNC machinery, and manufacturing automation where high-speed communication and reliable control are critical. Its compatibility with various Kinetix servo drives and ControlLogix chassis provides flexibility in system design.
