1756-IRT8IK
1756-IRT8IK
Manufacturer: ALLEN BRADLEY
Condition: New and Unused, Surplus.

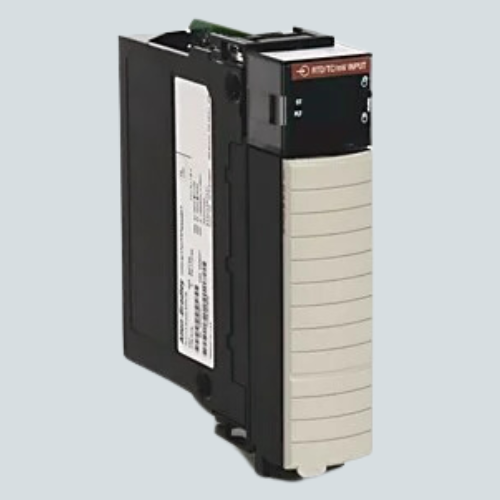

Overview of Allen Bradley 1756-IRT8IK
The Allen Bradley 1756-IRT8IK is a ControlLogix analog input module with eight isolated channels configurable for RTD (Resistance Temperature Detector) or thermocouple inputs. This module delivers high-accuracy temperature measurement with 24-bit resolution and supports multiple RTD types and thermocouples, making it suitable for precise temperature control and monitoring in industrial processes.
Key Features of Allen Bradley 1756-IRT8IK
- 8 Isolated Input Channels: Each channel configurable for RTD or thermocouple measurement.
- High Accuracy: 24-bit resolution provides precise temperature data.
- Supports Multiple Sensor Types: RTDs (1-, 2-, 3-, 4-wire) and thermocouples types B, C, E, J, K, R, S, T, N, and special sensors like D and L.
- Continuous Isolation: 125V basic insulation between inputs and backplane for safety and noise reduction.
- Software Programmable: Allows channel configuration, scaling to engineering units, and on-board alarming.
- Conformal Coated Circuit Board: Protection against moisture and contaminants in industrial environments.
Technical Specs
| Specification | Details |
|---|---|
| Input Channels | 8 isolated RTD/thermocouple |
| Input Range | RTD: 1-4000 Ω, Thermocouple: -100 to +100 mV |
| Supported Sensor Types | RTD (1-4 wire), Thermocouples (B, C, E, J, K, R, S, T, N, D, L) |
| Resolution | 24 bits |
| Isolation Voltage | 125V AC continuous basic insulation |
| Power Dissipation | Approx. 4.6 W at 60 °C |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Weight | Approx. 0.3 kg |
Applications / Use Case
The 1756-IRT8IK module is ideal for process control systems requiring precise temperature measurement and monitoring across diverse industrial applications such as manufacturing, energy, and chemical processing. It integrates fully with Allen Bradley ControlLogix systems to provide reliable temperature data for control and safety.
Rockwell Automation supports this module with industry compliance and extensive technical resources.
