Buy Allen-Bradley 1756-IR6I – Product Overview

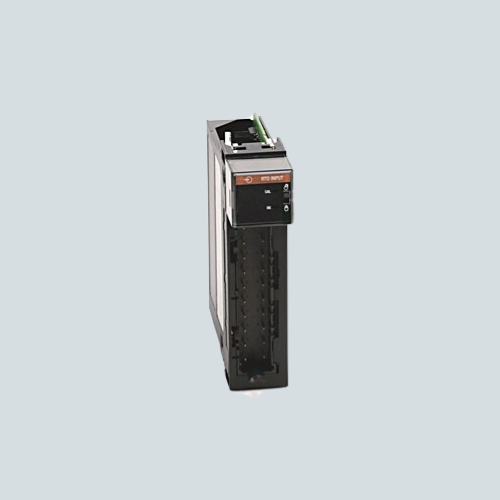

The Allen-Bradley 1756-IR6I is a ControlLogix analog input module engineered for precise temperature measurement in industrial automation systems. This six-point isolated RTD input module delivers 16-bit resolution and individually isolated channels, making it ideal for applications requiring high accuracy and noise immunity. Designed for seamless integration into ControlLogix control systems, the 1756-IR6I supports multiple RTD types including platinum (alpha=385 and alpha=3916), nickel, and copper sensors. Whether you're upgrading legacy systems or building new automation architectures, this module provides the reliability and precision that industrial plants depend on. Available for worldwide delivery from LeadTime.ca, your trusted supplier in Canada and the United States.
Allen-Bradley 1756-IR6I Features & Benefits
- Six individually isolated RTD inputs with 250V continuous isolation between channels
- 16-bit signed resolution for accurate temperature sensing and resistance measurement
- Selectable integer or IEEE 32-bit floating-point data format for flexible programming
- Module scan times: 25ms floating-point (ohms), 50ms floating-point (temperature), 10ms integer
- Low power dissipation (4.3W max) with minimal backplane current draw
- Compatible with standard 1756-TBNH and 1756-TBSH removable terminal blocks
- On-board data alarming and scaling to engineering units
- Electronic module keying and mechanical RTB keying for secure installation
Allen-Bradley 1756-IR6I Specifications & Datasheet
| Specification | Value |
|---|---|
| Product Series | ControlLogix (1756/1757) |
| Module Type | Analog RTD Input Module |
| Input Channels | 6-point isolated RTD |
| Input Range | 1–487Ω, 2–1kΩ, 4–2kΩ, 8–4kΩ |
| Resolution | 16-bit signed |
| Power Dissipation (Max) | 4.3W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Backplane Current (5V) | 250mA |
| Backplane Current (24V) | 125mA |
Access the official Allen-Bradley 1756-IR6I datasheet and technical manual for complete configuration details and installation guidelines before deployment.
Allen-Bradley 1756-IR6I Applications in Industrial Automation
This Allen-Bradley 1756-IR6I is commonly used in industrial automation, process control, machine automation, production line systems, factory control panels, and motion control systems worldwide. Industries including food processing, pharmaceutical manufacturing, chemical production, and metal fabrication rely on this module for real-time temperature monitoring and RTD signal conditioning. Its individually isolated channels prevent ground loop interference, making it essential for multi-zone heating, cooling, and environmental control applications across North America, Europe, and Asia.
